KF050M-020-KND-PH - Datasheet

MBA

Product Data

• Thread Size : M5 (5x0.8mm) _{+ 0.10 / - 0.00}

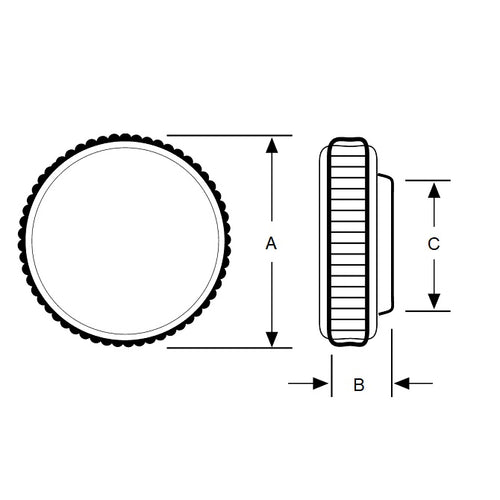

• Head Diameter (A) 20.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.787 in.)
• Thread Length 9.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.354 in.)
• Colour Black

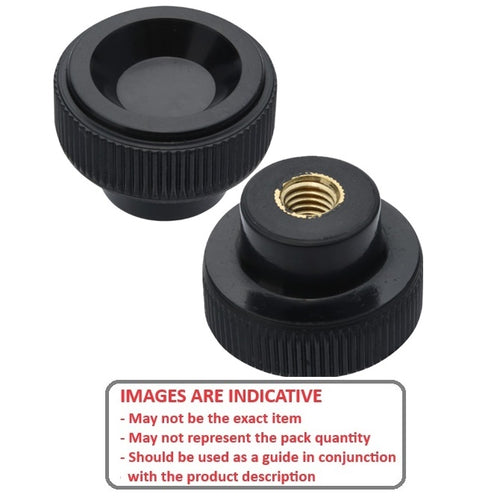

• Style Disc
• Hub Diameter (E) 14.00 mm
• Hub Length (D) 5.00 mm
• Knob Height (C) 15.5
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NDXF5
• CNDXF5
