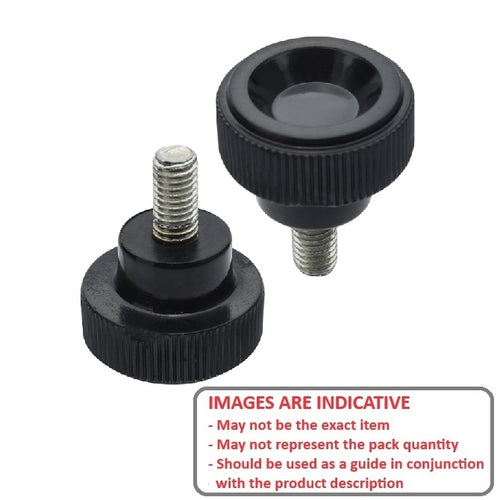

KM050M-020-KND20-PH - Datasheet

MBA

Product Data

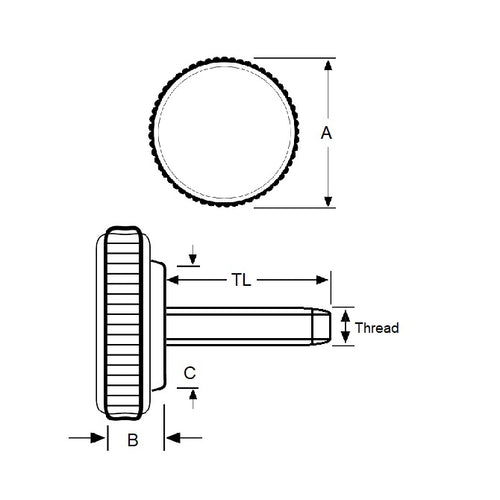

• Thread Size : M5 (5x0.8mm) _{+ 0.10 / - 0.00}
• Head Diameter (A) 20.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.787 in.)
• Thread Length 20.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.787 in.)
• Colour Black
• Style Disc
• Hub Diameter (E) 14.50 mm
• Hub Length (D) 15.50 mm
• Knob Height (C) 14.0
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NDXM5-20
• CNDXM520
