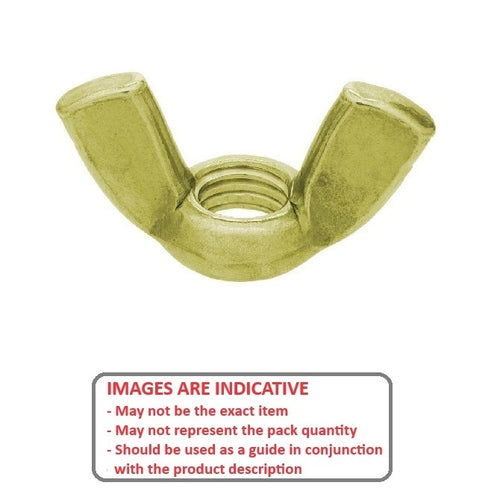

NT050M-WG-BR - Datasheet

MBA

Product Data

• Thread Size : M5 (5x0.8mm)
• Body Height (D) 3.8 mm
• Wing Width 22.5 mm
• Overall Height (C) 10.5 mm
• Pitch in mm / Threads Per Inch 0.800 mm / 31.75 TPI
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
