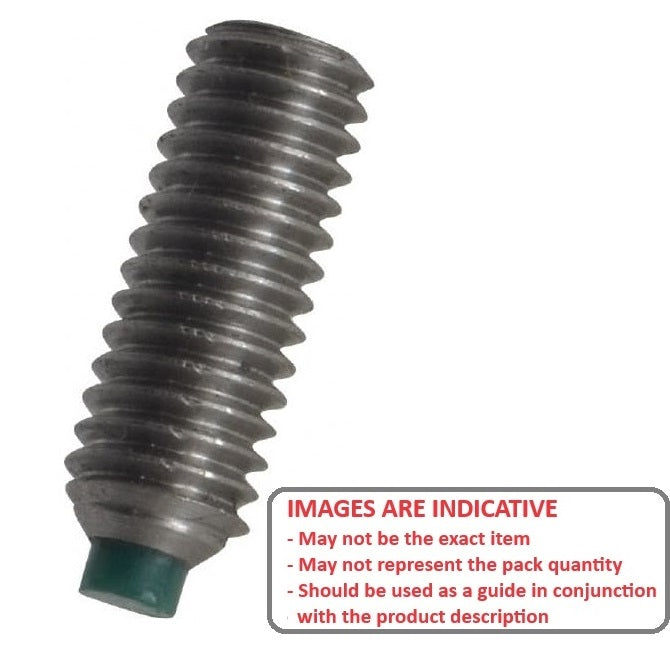

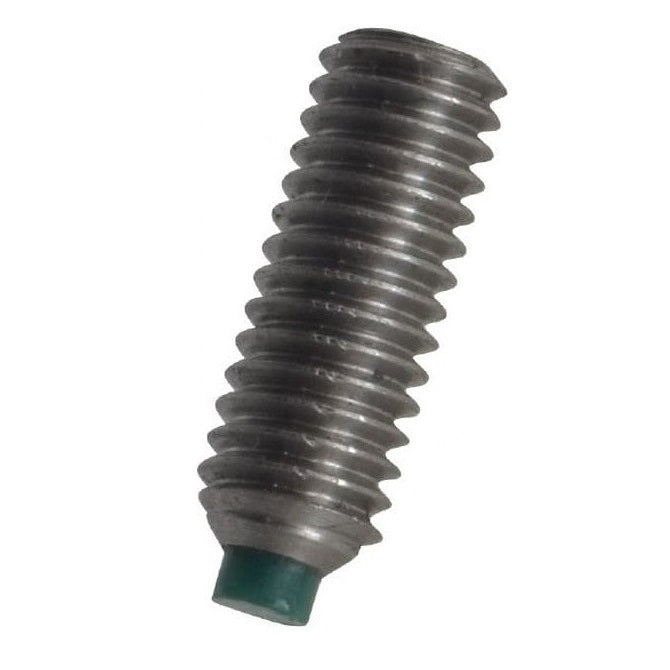

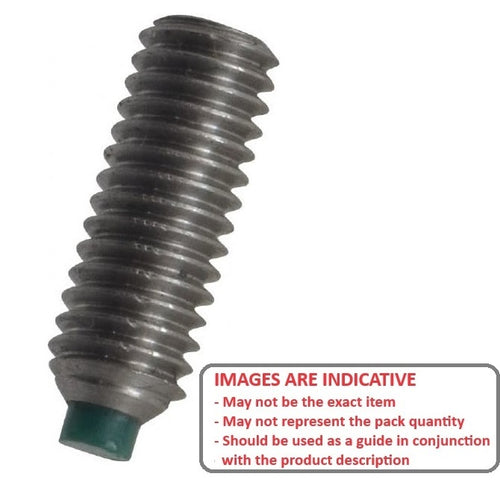

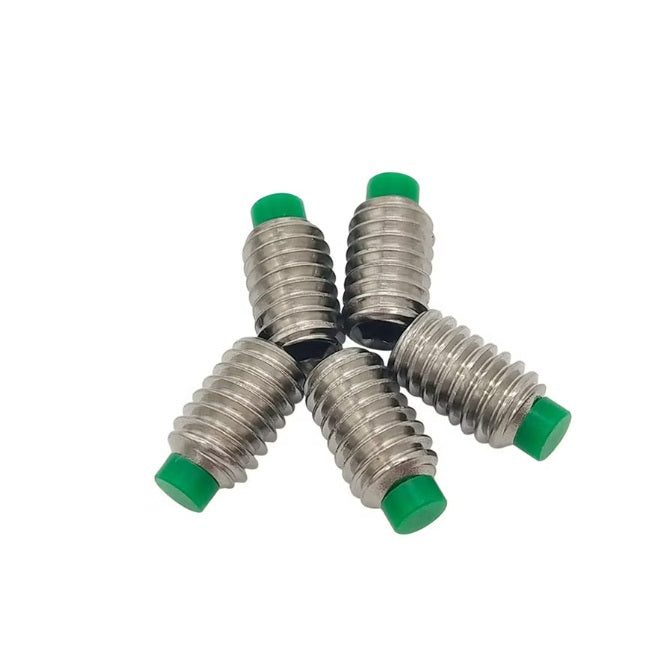

SS050M-0098-S4-NT - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size : M5 (5x0.8mm)
• Thread Length (L) 9.8 mm
  (Equiv. 0.386 in.)
• Type Nylon Tipped
• Overall Length (L + L1) 11.0 mm
• Tip Diameter (d) 2.4 mm
• Tip Length (L1) 1.2
• Hex Key Size 2.50
• Pitch 0.800 mm
• Threads Per Inch 31.75 TPI
• Drive Type Socket
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• A9X93MSO050110
• A 9X93MSO050110
