SC050M-050-P-PH-CZ - Datasheet
MBA
Category Information

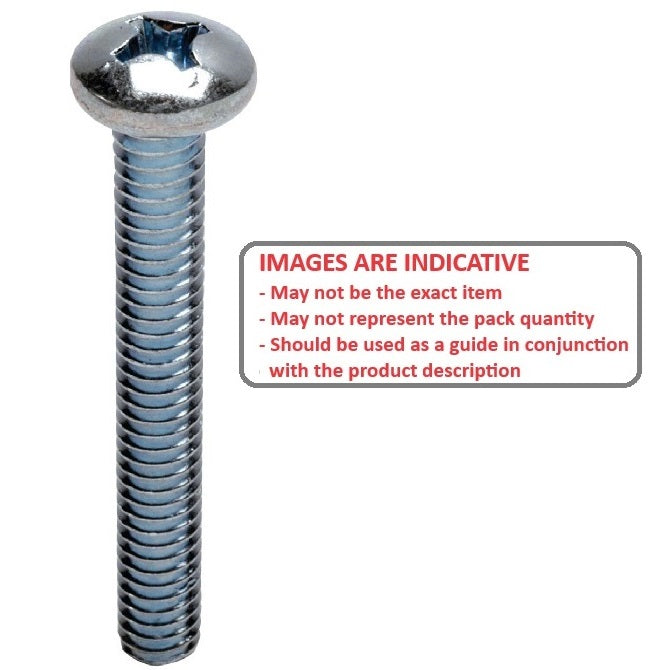

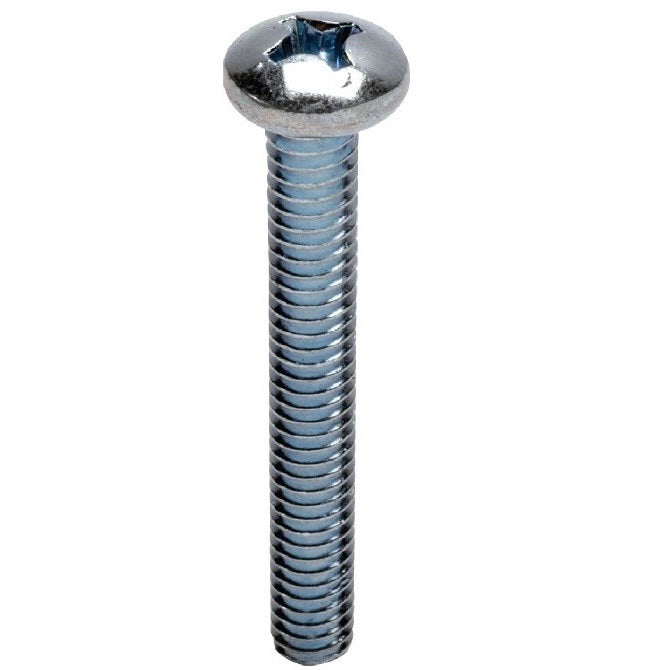

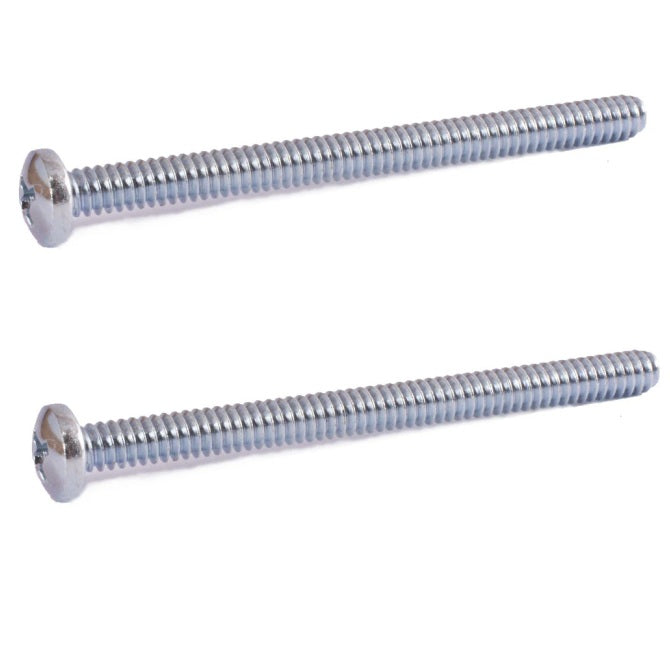

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
50
mm
(Equiv. 1.969 in.) - Material Zinc Plated Steel
- Max Head Diameter 10.0 mm
- Max Head Height 3.8 mm
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92005A342
- Hitech MSPPZP550
