Miniature Bearings Australia

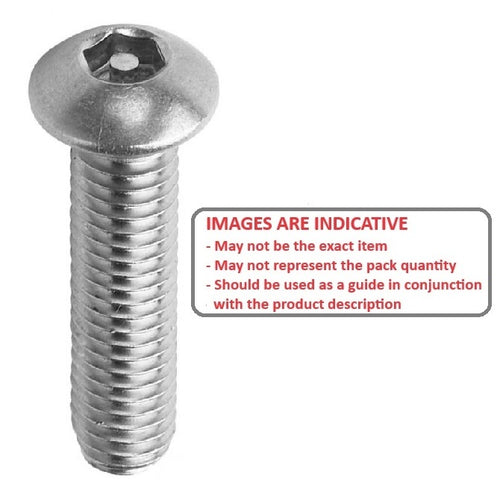

SCS0500-050-B-SK-S4 - Datasheet
MBA
Category Information
Screws - Security - Button - SocketSocket Button Security Screws. Metric only.
- Use special tool listed under Screws - Security - Socket - Tools.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

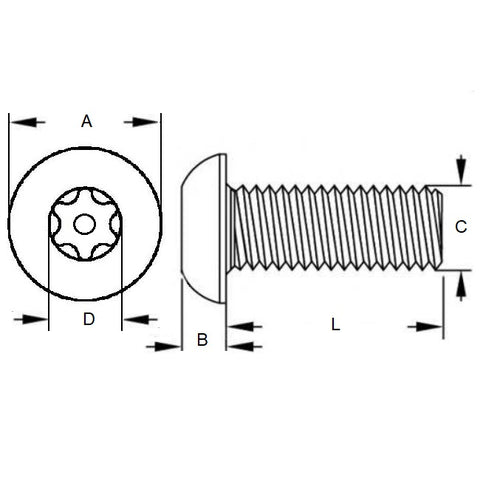

- Thread Size (C) : M5 (5x0.8mm)
- Length
50
mm
(Equiv. 1.969 in.) - Material 304 Stainless
- Power Bit to Match TL-SEC-0500-SK-PB
- Hand Key to Match TL-SEC-0500-SK-HK
- Pitch 0.800 mm
- Threads Per Inch 31.8 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MD7BM5-50
