SK050M-030-O-SL-S4 - Datasheet
MBA
Category Information

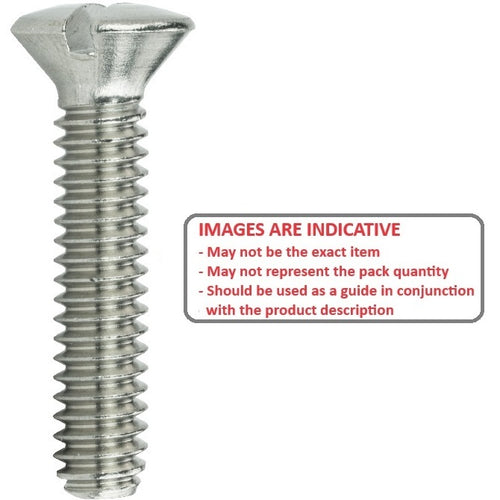

Screws - Countersunk - Oval Top - Slotted 304 StainlessSlotted 304 Stainless Oval Top Countersunk Screws. Flat Head Countersunk. Metric only.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

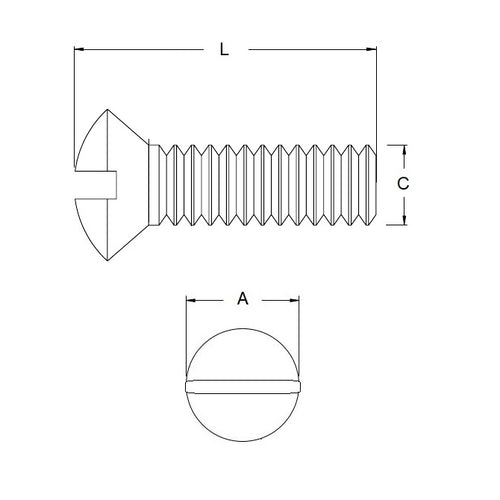

- Thread Size (C) : M5 (5x0.8mm)
- Overall Length (L)
30
mm
(Equiv. 1.181 in.) - Material 304 Stainless
- Max Head Diameter 9.20 mm
- Max Head Height 5.00 mm
- Type Oval Countersunk / Slotted
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MD0964MXO050X030
