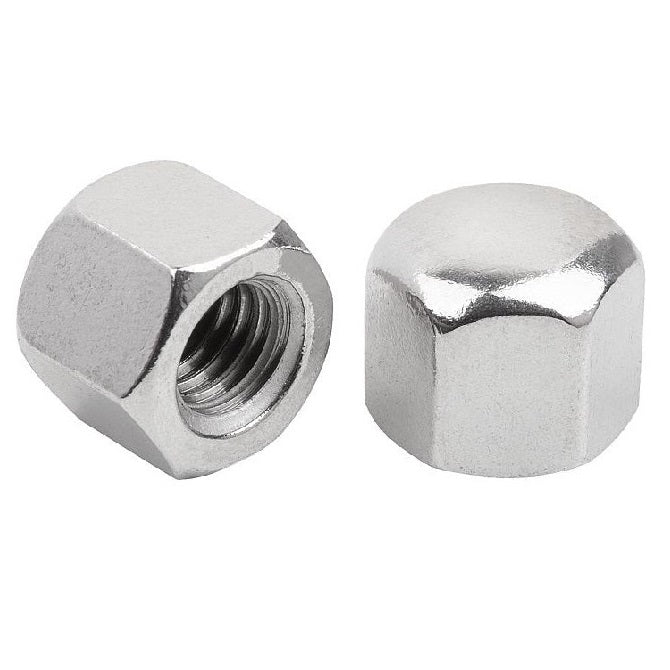

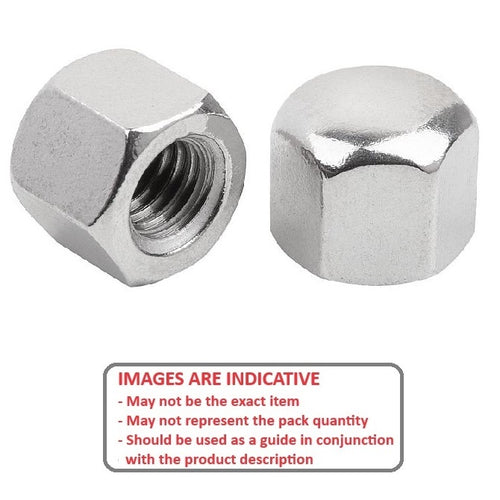

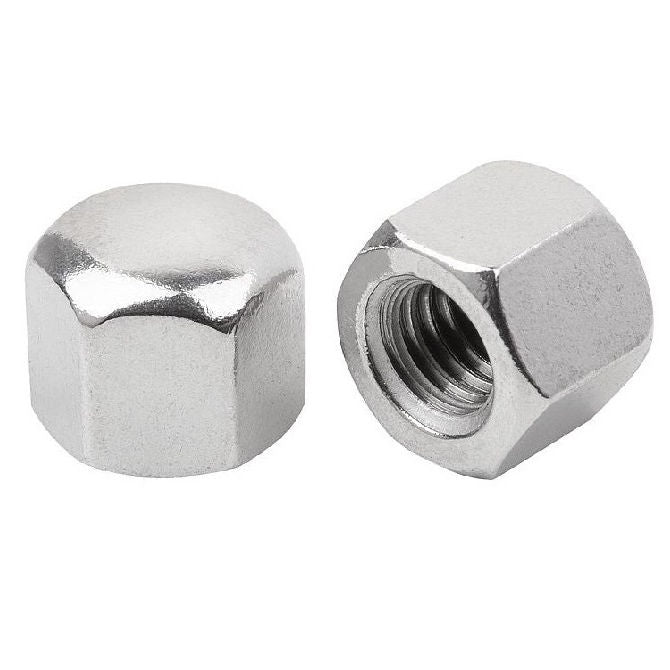

NT050M-CP-S4 - Datasheet

Brighton Best

Product Data

• Thread Size : M5 (5x0.8mm)
• Material 304 Stainless

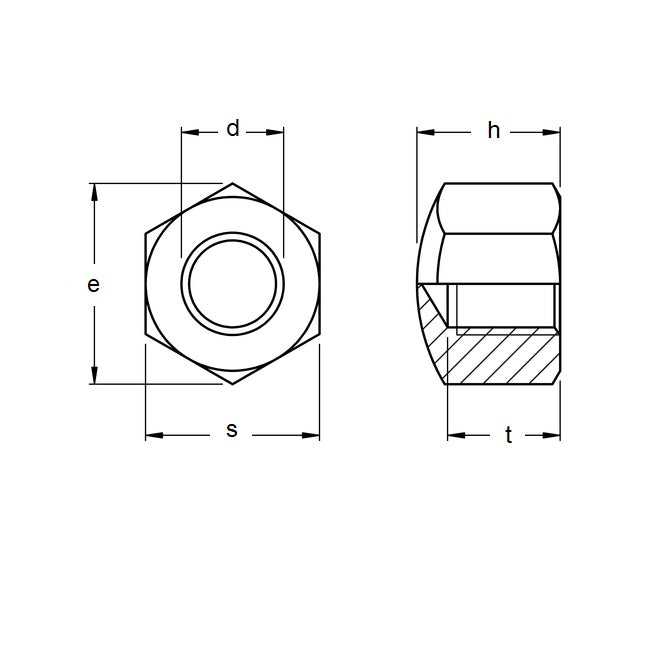

• Height (h) 6.64 - 8.0 mm
  (Equiv. 0.261 in.)
• Base Height (t) 4.96 to 5.44 mm
• Across Flats (s) 8 (min 7.78)
• Across Tips (e) min. 8.79 mm
• Pitch 0.800 mm
• Threads Per Inch 31.75 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best V99050
