SS050M-0060-AS-DP - Datasheet

SSA

Product Data

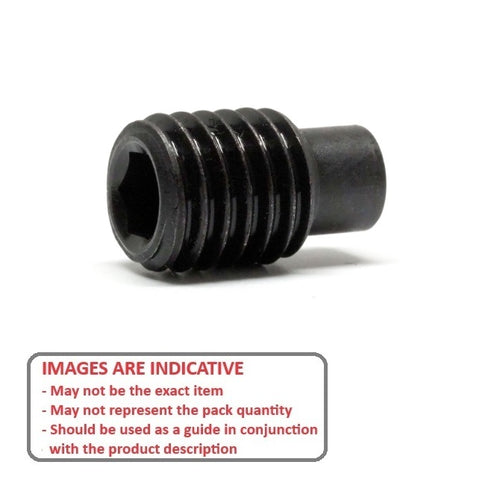

• Thread Size : M5 (5x0.8mm)
• Thread Length (L) 3.3 mm
  (Equiv. 0.13 in.)
• Type Dog Point
• Overall Length (L + L1) 6.0 mm
• Tip Diameter (d) 3.2 - 3.5 mm
• Tip Length (L1) 2.5 - 2.8 mm
• Hex Key Size 2.50
• Pitch 0.800 mm
• Threads Per Inch 31.75 TPI
• Material Carbon Steel
