SC050M-020-HS-CZ - Datasheet
MBA
Category Information

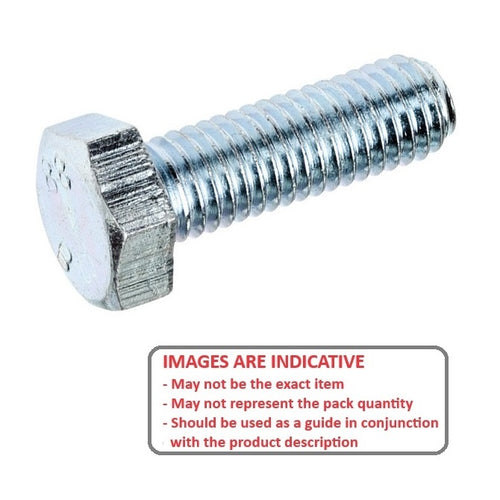

Screws - Hex Head - Full Thread - Steel Zinc PlatedSteel Zinc Plated Full Thread Hex Head Screws. BSW and METRIC - Set Screws
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
20
mm
(Equiv. 0.787 in.) - Material Zinc Plated Steel
- Max Head Diameter 8.00 mm
- Max Head Height 3.65 mm
- Type Set Screw - Full Thread
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSHSZP520
