NT050M-HH-S4 - Datasheet
Brighton Best
Category Information

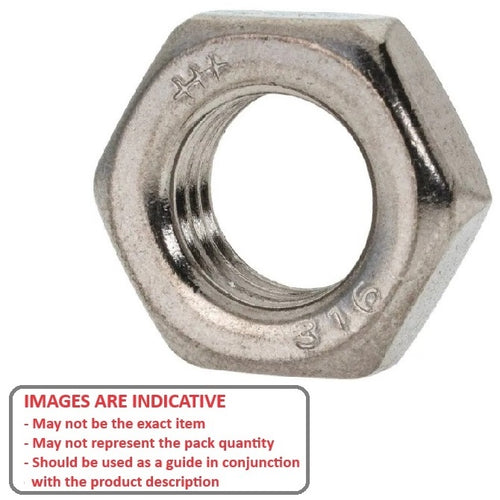

Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M5 (5x0.8mm)
- Thickness (H)
2.45
mm
(Equiv. 0.096 in.) - Across Flats (A/F)
8.0
mm
(Equiv. 0.315 in.) - Type Half Nut
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90710A037
