SS050M-0200-AS-DP - Datasheet
SSA
Category Information

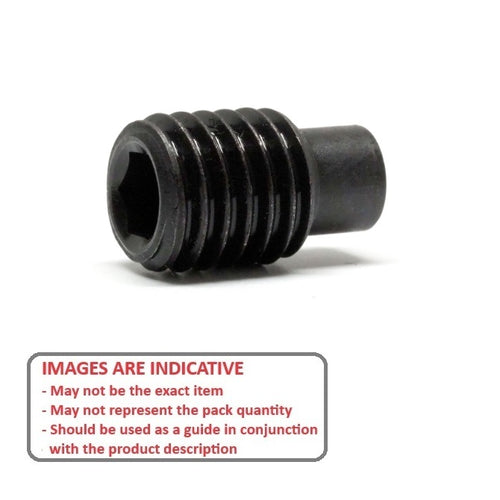

Socket Set Screws - Dog Point Carbon SteelDog Point Carbon Steel Socket Set Screws. Dog point grub screws
- Socket drive grub screws with a dog point tip.
- Set screw with a cylindrical, unthreaded "dog" tip that fits into a pre-drilled hole, slot, or milled flat in a second part to permanently locate and secure two components together.
- Commonly used in machinery to prevent movement, such as locking a gear onto a shaft.
Product Data
- Thread Size : M5 (5x0.8mm)
- Thread Length (L)
17.3
mm
(Equiv. 0.681 in.) - Type Dog Point
- Overall Length (L + L1) 20.0 mm
- Tip Diameter (d) 3.2 - 3.5 mm
- Tip Length (L1) 2.5 - 2.8 mm
- Hex Key Size 2.50
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Carbon Steel
