SC050M-016-HS-CZ - Datasheet

MBA

Category Information

Screws - Hex Head - Full Thread - Steel Zinc Plated

Steel Zinc Plated Full Thread Hex Head Screws. BSW and METRIC - Set Screws

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size (C) : M5 (5x0.8mm)
  • Thread Length (L) 16 mm
    (Equiv. 0.63 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter 8.00 mm
  • Max Head Height 3.65 mm
  • Type Set Screw - Full Thread
  • Pitch 0.800 mm
  • Threads Per Inch 31.75 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSHSZP516
View full details

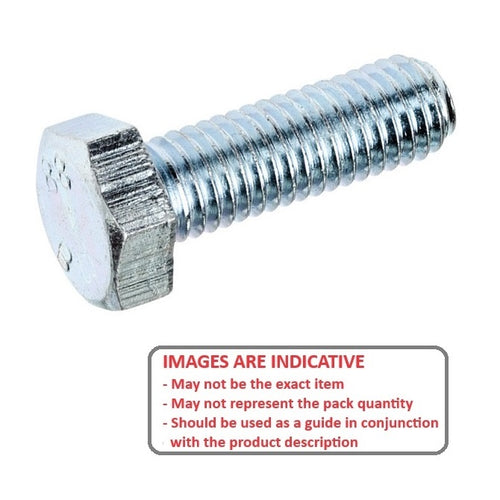

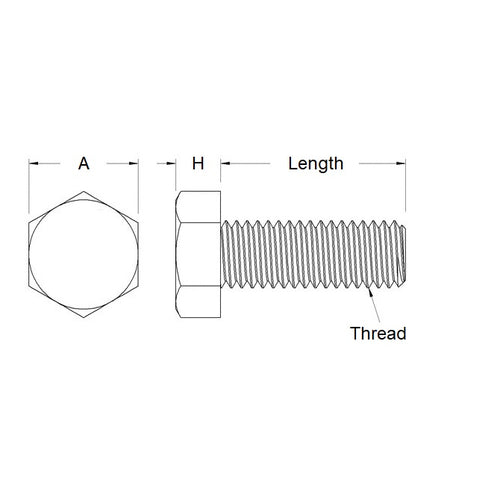

SC050M-016-HS-CZDiagramSC050M-016-HS-CZImage
