Miniature Bearings Australia
SC050M-016-P-SL-BR - Datasheet
MBA
Category Information

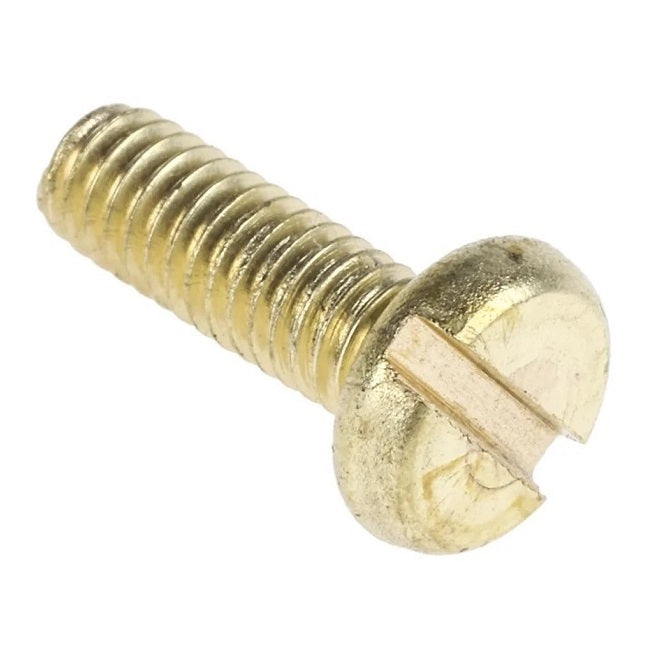

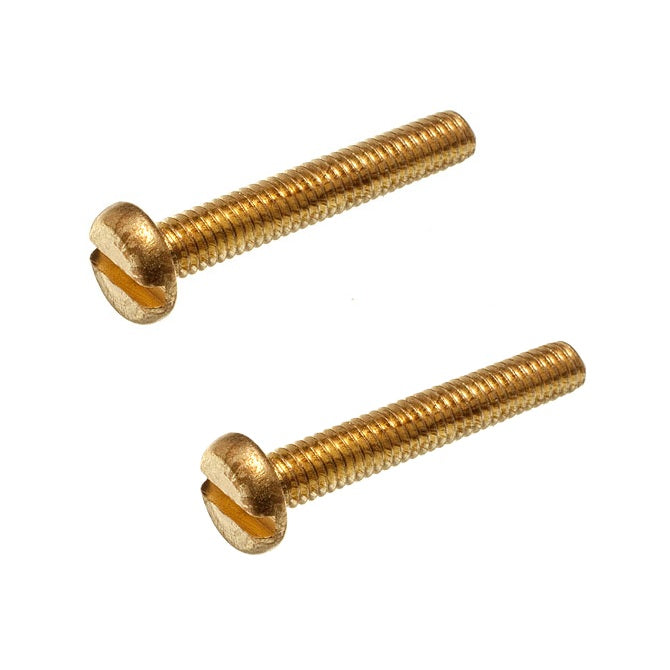

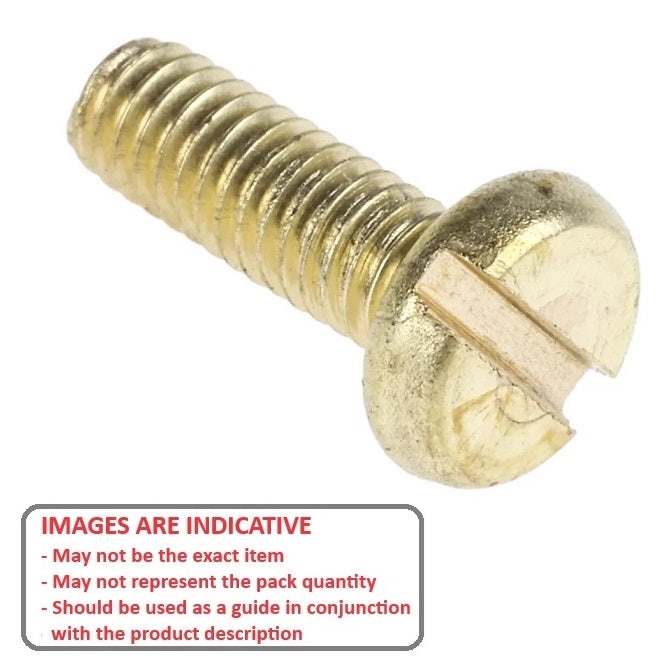

Screws - Pan Head - Slotted - BrassBrass Slotted Pan Head Screws. Brass metal thread machine screws METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

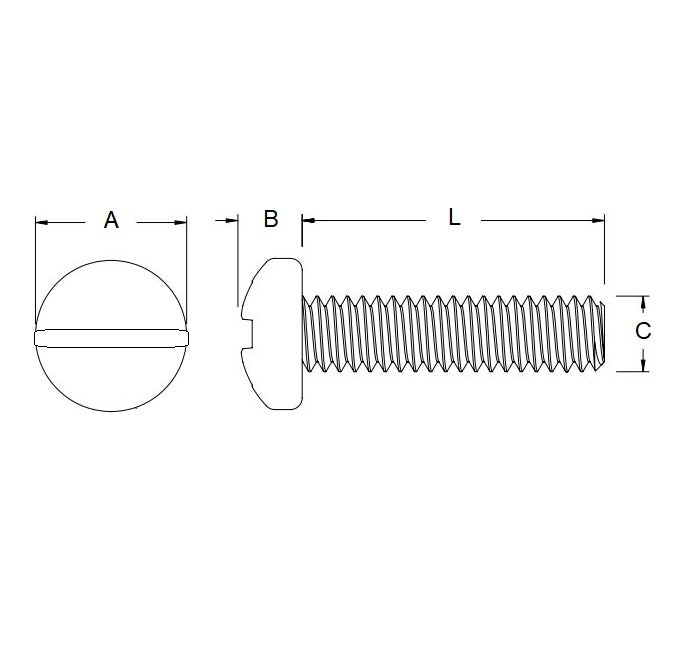

- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
16
mm
(Equiv. 0.63 in.) - Material Brass
- Max Head Diameter 10.0 mm
- Max Head Height 3.8 mm
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90928A358
- Hitech BRPSP516
