THS050M-016-F-CS - Datasheet
MBA
Category Information

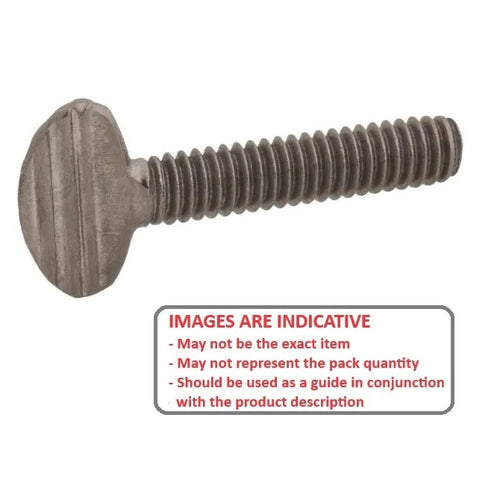

Screws - Thumb - Flat Key Head - StandardStandard Flat Key Head Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

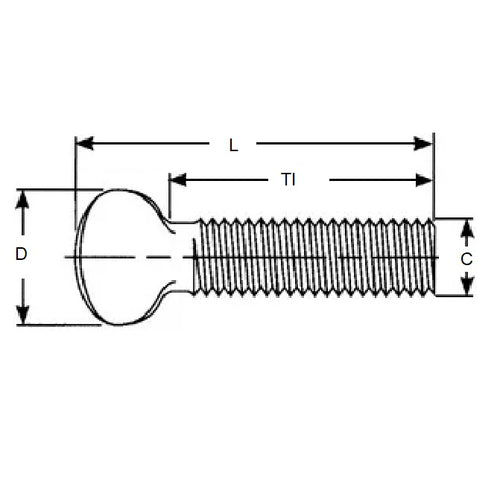

- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (Tl)
16.00
mm
(Equiv. 0.63 in.) - Overall Length (L)
27.70
mm
(Equiv. 1.091 in.) - Head Diameter (D) 13.70 mm
- Finish Zinc Plated
- Head Type Flat Key
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSTSZP516
