SC050M-012-H-TC1 - Datasheet

MBA

Category Information

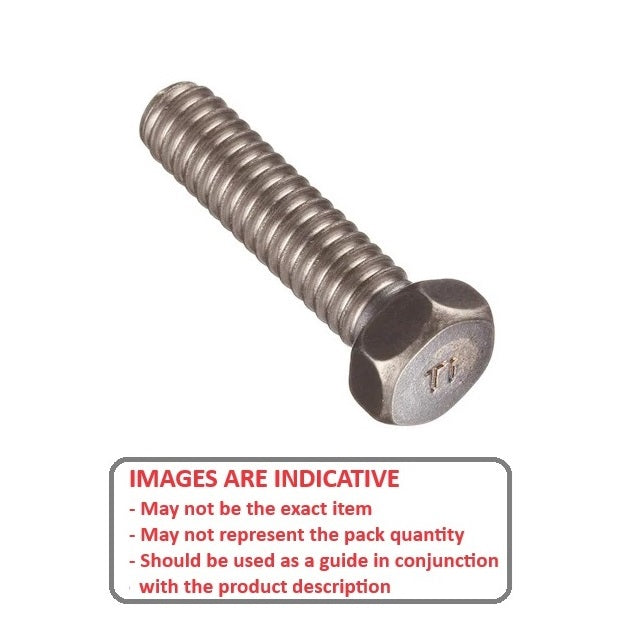

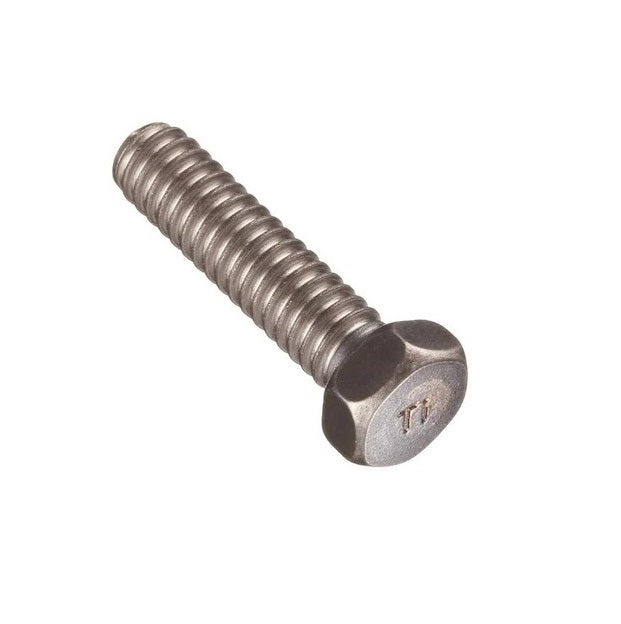

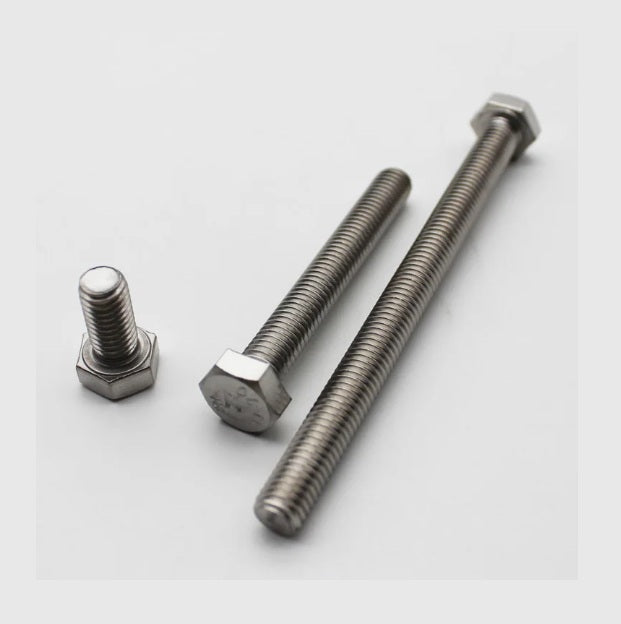

Screws - Hex Head - Full Thread - Titanium - CP Grade 1

CP Grade 1 Titanium Full Thread Hex Head Screws. Fully threaded hex head set screws (DIN933). CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm². Yield Strength 17.6 kgf/mm². Elongation 24 Percent.

An expanded range may be available on special order. Please enquire.
Din 933. Commercially pure for general industrial corrosion applications. UNS R50250.
Widely used in power generation, chemical processing, aerospace and medical applications.
Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

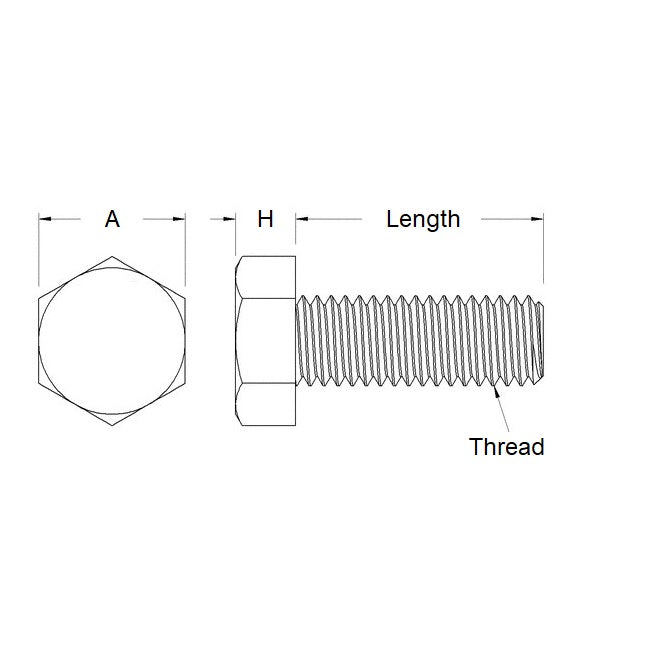

Thread Size (C) : M5 (5x0.8mm)
Thread Length (L) 12 mm
(Equiv. 0.472 in.)
Material Titanium CP Grade 1
Max Head Diameter 8.00 mm
Max Head Height 3.65 mm
Type Set Screw - Full Thread (DIN933)
Pitch 0.800 mm
Threads Per Inch 31.75 TPI
Material Titanium - CP1 Commercially Pure

Country of Origin: US
