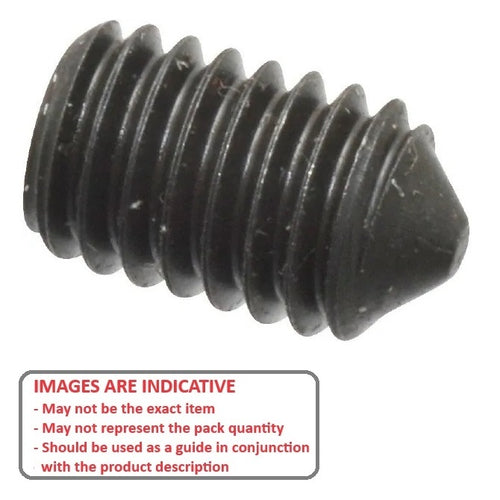

SS050M-0120-AS-CP - Datasheet

SSA

Product Data

• Thread Size : M5 (5x0.8mm)

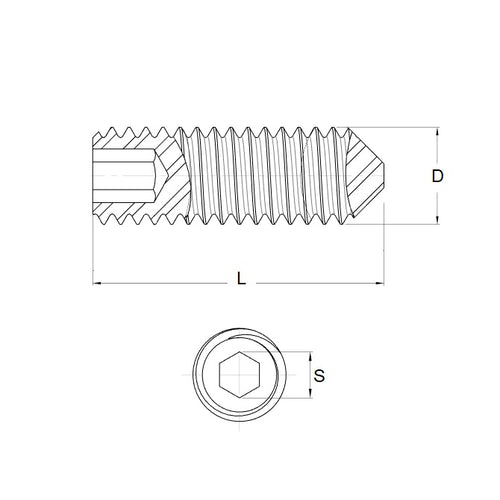

• Thread Length (L) 12.0 mm
  (Equiv. 0.472 in.)
• Type Cone Point
• Hex Key Size 2.50
• Pitch 0.800 mm
• Threads Per Inch 31.75 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
