SC050M-010-P-SL-N - Datasheet
MBA
Category Information

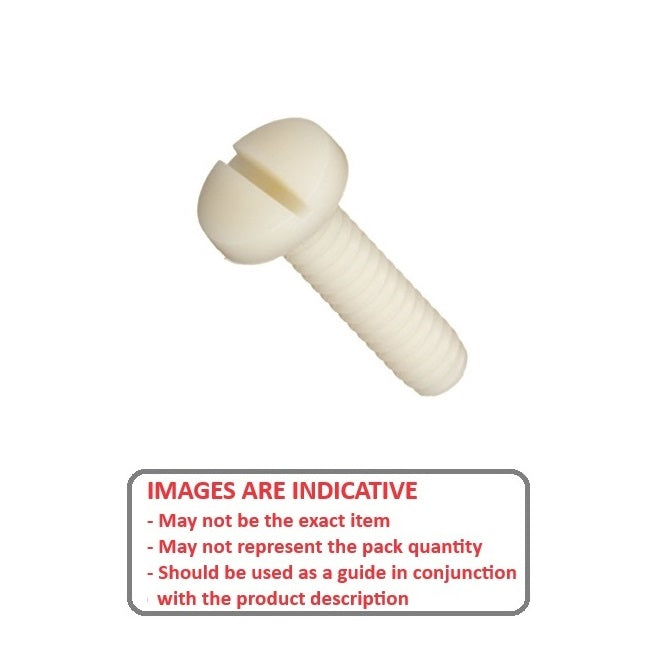

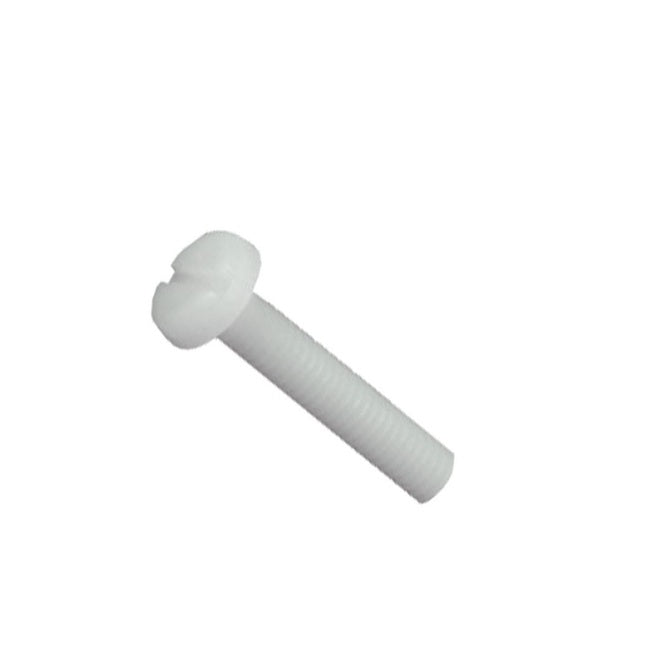

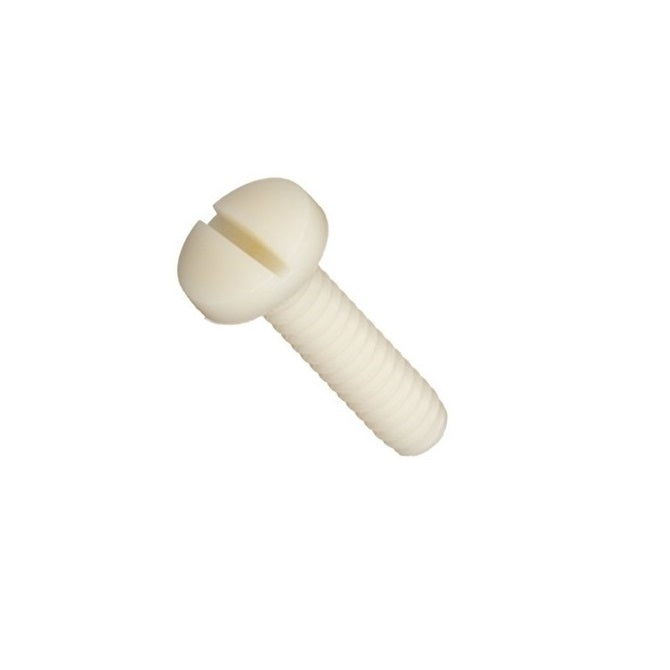

Screws - Pan Head - Slotted - NylonNylon Slotted Pan Head Screws. UNC - UNF - Metric
- An expanded range may be available on special order. Please enquire.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

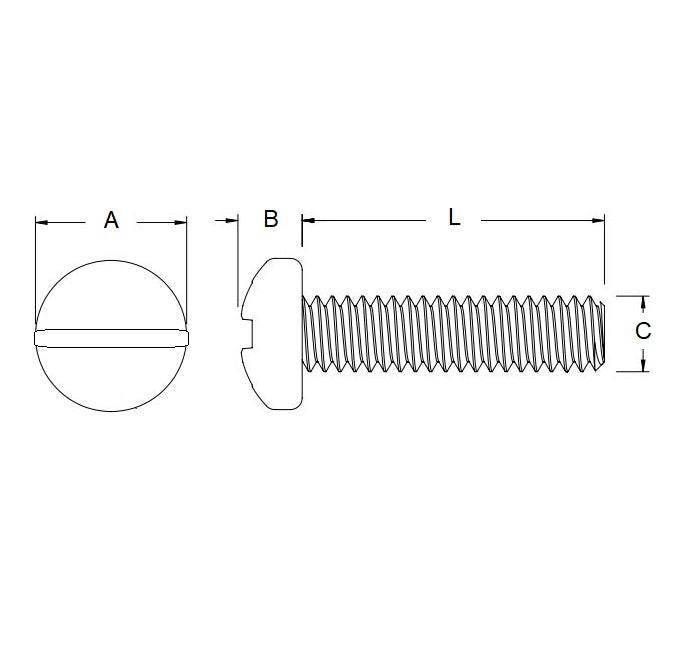

- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
10
mm
(Equiv. 0.394 in.) - Material Nylon
- Max Head Diameter 10.0 mm
- Max Head Height 3.8 mm
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 253230
- 92942A825
- SHMN5-10
- SHMN510
