SC050M-010-LH-SK-C - Datasheet
Brighton Best
Category Information

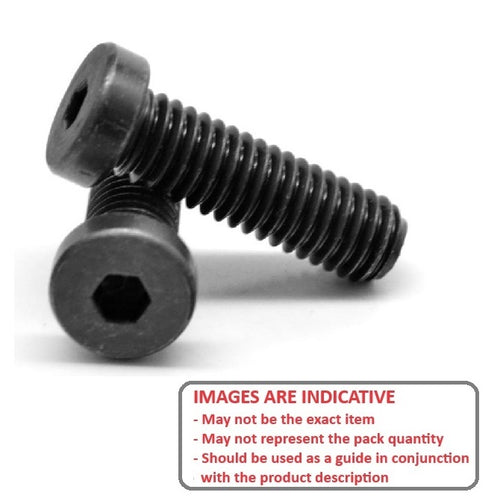

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
10
mm
(Equiv. 0.394 in.) - Material High Tensile Steel / Black Oxide
- Head Height 4.82 - 5.00 mm
- Head Diameter 8.28 - 8.72 mm
- Usual Hex Key (D) 3.00 (May Vary) mm
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 531066
- 93070A121
