TPC-050M-I - Datasheet
Bordo
Category Information
Tools - Threading - Hand Taps - Carbon SteelCarbon Steel Hand Taps Threading Tools. Carbon Steel Straight Flute Taps. Starting from M1 and 0-90 UNF. Many unusual sizes - M1.2, M1.4, M1.6, M1.7, BA Sizes, 2-56 and more. Sutton - PN - Bordo.
- An expanded range may be available on special order. Please enquire.
- Carbon steel hand taps
- Carbon Steel (CS) Hand taps.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : M5 (5x0.8mm)
- Pitch in mm / Threads Per Inch 0.800 mm / 31.75 TPI

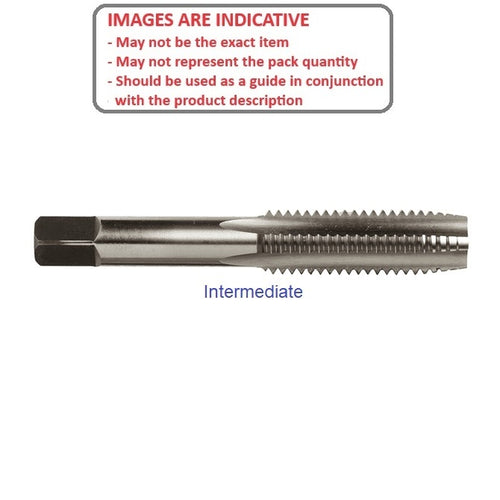

- Type Intermediate
- Drill Size Range 4.20 - 4.50 mm
- mm 4.00
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sutton 011288
- Bordo 4220-5.00IC
- TI7810
- TI-7810
- 4220500IC
