KF050M-025-7LQA - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Quick Acting

Quick Acting Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M5 (5x0.8mm)
  • Head Diameter (A) 25.00 mm
    (Equiv. 0.984 in.)
  • Colour Black
  • Hub Diameter (D) 10.00 mm
  • Hub Length (C) 8.00 mm
  • Knob Height (B) 15.50 mm
  • E 5.20 mm
  • Material Steel Hub
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KPB-1129
  • KPB1129
View full details

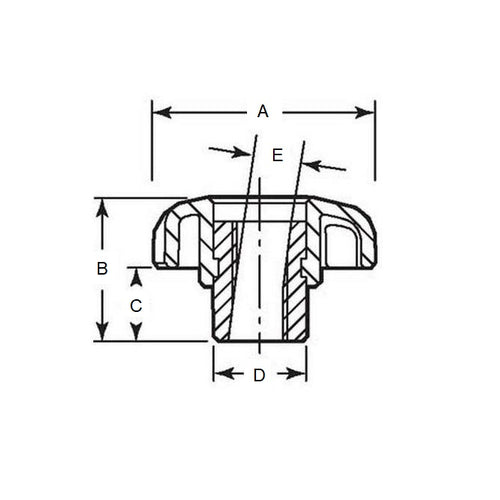

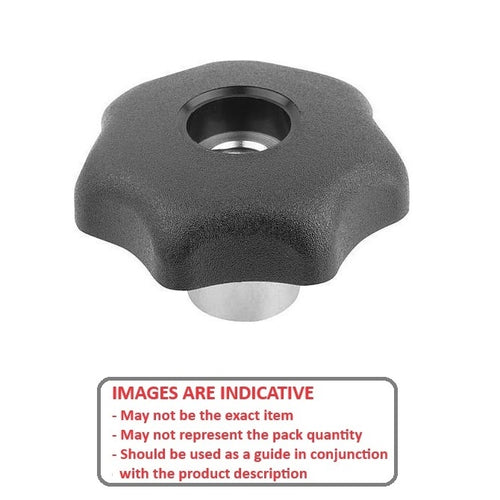

KF050M-025-7LQADiagramKF050M-025-7LQAImage
