KF050M-020-T303 - Datasheet

MBA

Category Information

Knobs - Ball - Female Threaded - Stainless Steel

Stainless Steel Female Threaded Ball Knobs. 303 stainless steel (European grade 1.4305)

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread or Hole Size : M5 (5x0.8mm)
  • Diameter 20.00 mm
    (Equiv. 0.787 in.)
  • Thread Minimum Depth 9.1 mm
    (Equiv. 0.358 in.)
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WBK10
  • WBK-10
View full details

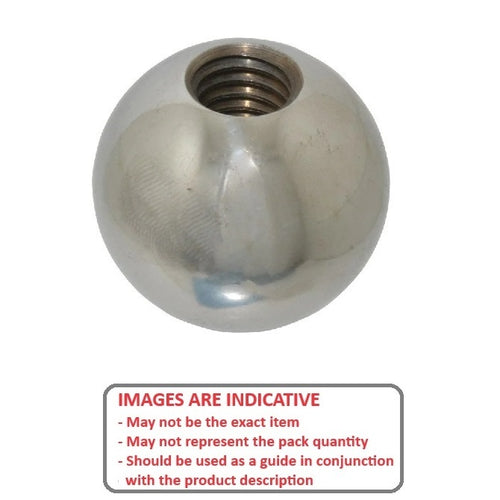

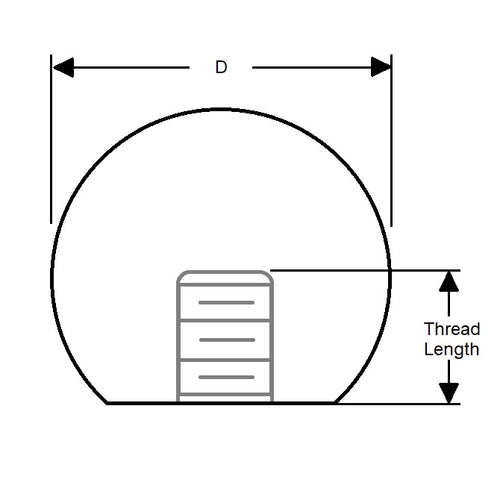

KF050M-020-T303DiagramKF050M-020-T303Image
