KF050M-025-STRF-PL - Datasheet
MBA
Category Information
Knobs - Star - Female PlasticFemale Plastic Star Knobs. Also see lobe knobs
- Plastic (high grade gloss black phenolic) knob with steel insert.
- Temperature Range: -30oC to +140oC.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

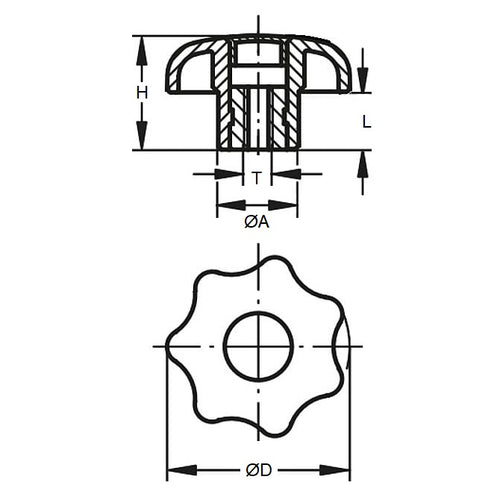

- Thread Size : M5 (5x0.8mm)
- Head Diameter (D)
25.00
mm
(Equiv. 0.984 in.) - Thread Depth (L)
9.0
mm
(Equiv. 0.354 in.) - Shank Diameter (A) 12.0 mm
- Height (H) 16.0 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- SK10F
