SPANC-050M-040 - Datasheet

MBA

Category Information

Spring Anchors - Steel

Steel Spring Anchors. C-12114 steel selection. Black oxide finish.

  • An economical way to secure the ends of extension springs, and provide easy adjustment.

Product Data

  • Thread : M5 (5x0.8mm)

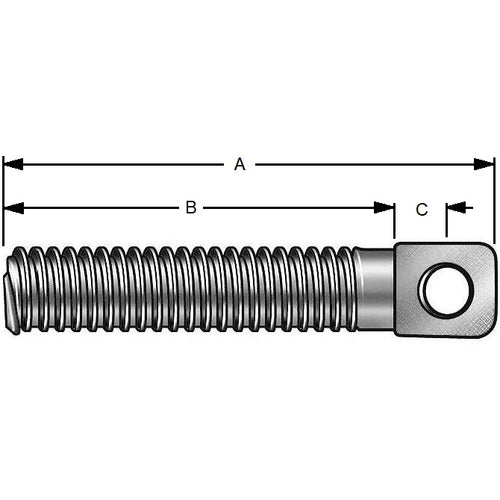

  • Overall Length (A) 40.00 mm
  • Thread Length (B) 31.00 mm
  • Thread to Centre Eye (C) 2.00 mm
  • Hole Size 2.00 mm
  • Material Trivalent Chromate S45C Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-AIPO5-40
  • CAIPO540
View full details

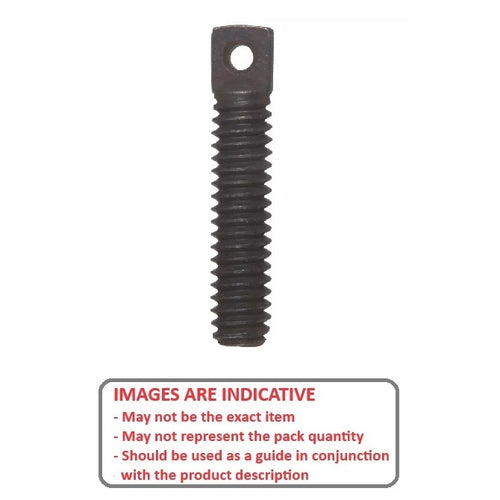

SPANC-050M-040DiagramSPANC-050M-040Image
