KLI-050M-080-08-SS - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

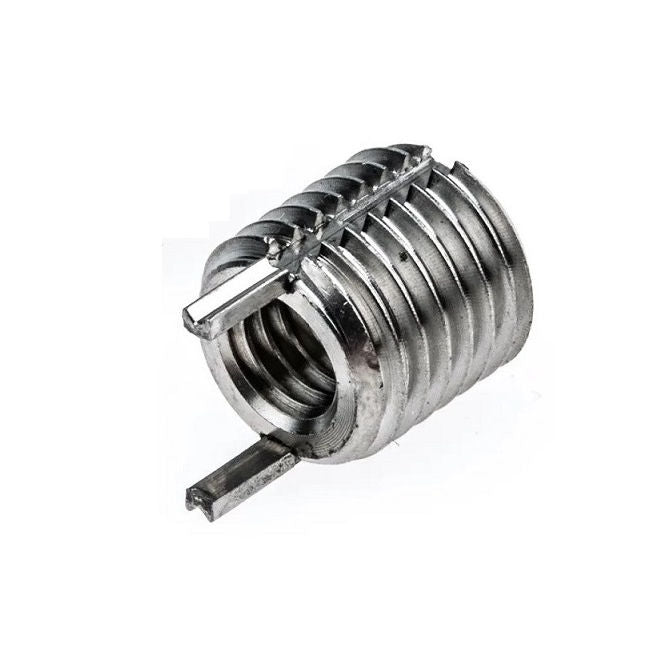

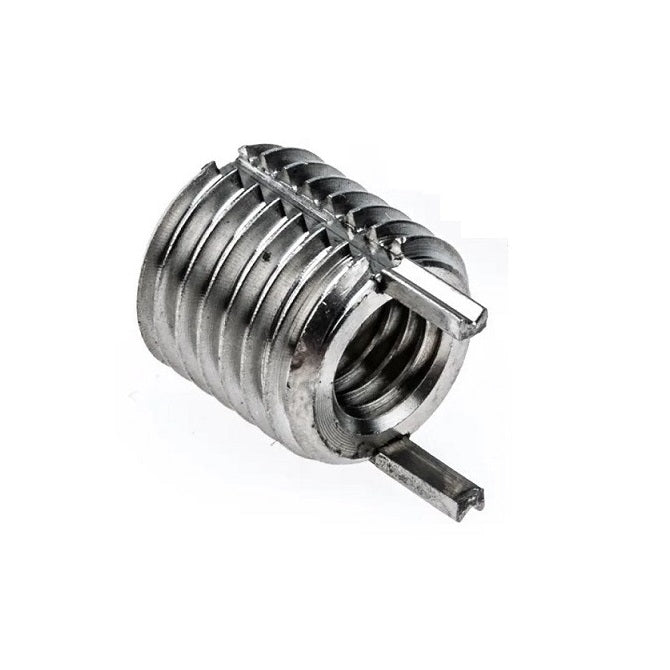

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

Product Data

  • Internal Thread : M5 (5x0.8mm)
  • External Thread M8 x 1.25
  • Length 8.00 mm
    (Equiv. 0.315 in.)
  • Tap Drill Diameter 6.90 mm
  • Countersink Diameter 8.25 mm
  • Locking Keys 2
  • Tapped Hole Depth 9.50 mm
  • Removal Drill Size 5.50 mm
  • Removal Drill Depth 4.00 mm
  • Installation Tool KLI-64751RS
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 93715A605
  • KI-5
  • KLI-66351
  • KLI66351
  • KI5
