SC050M-008-ULH-PH-CZ - Datasheet
MBA
Category Information
Screws - Ultra Low Head - Phillips - SteelSteel Phillips Ultra Low Head Screws. Metric Steel
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data

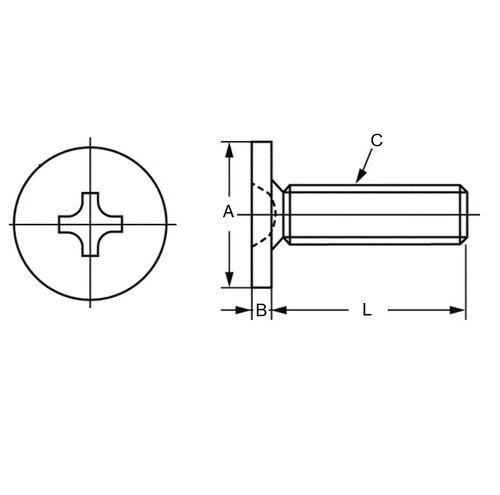

- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
8
mm
(Equiv. 0.315 in.) - Material Alloy Steel - Trivalent Chromate
- Max Head Dia. 9.0 mm
- Max Head Height 1.0 mm
- Drive PH-2
- Type Ultra Low Head Philips
- Pitch 0.80 mm
- Threads Per Inch 31.75 TPI
- Material Steel - Trivalent Chromate Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi C-CBSAR5-8
- CCBSAR58
