Miniature Bearings Australia
SC050M-035-C-SKT-A - Datasheet
MBA
Category Information

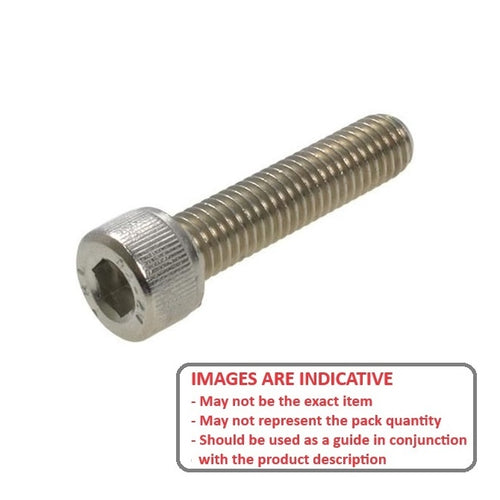

Screws - Socket Cap - AluminiumAluminium Socket Cap Screws. Variety of colours available.
- An expanded range may be available on special order. Please enquire.
- Other colours available on request. Minimum quantities will apply.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (L)
35
mm
(Equiv. 1.378 in.) - Material A7050 Aluminum
- Head Length (B Max.) 5 mm
- Head Diameter (A Max.) 8.5 mm
- Hex Key (D) 4.00 mm
- Colour Natural
- Pitch 0.80 mm
- Threads Per Inch 31.750 TPI
- Min thread Length Fully Threaded mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-AL-M5-35
- CSHALM535
