KM050M-025-3L25 - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M5 (5x0.8mm)
  • Head Diameter (A) 25 mm
    (Equiv. 0.984 in.)
  • Thread Length 25 mm
    (Equiv. 0.984 in.)
  • Colour Black
  • Hub Diameter (C) 14.00 mm
  • Hub Length (D) 7.000 mm
  • Knob Height (B) 14.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NSJGM5-25
  • CNSJGM525
View full details

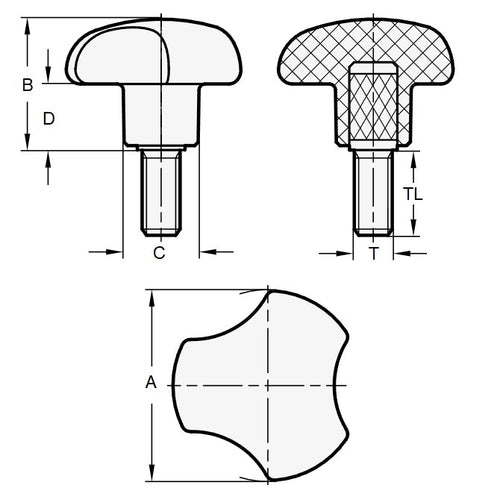

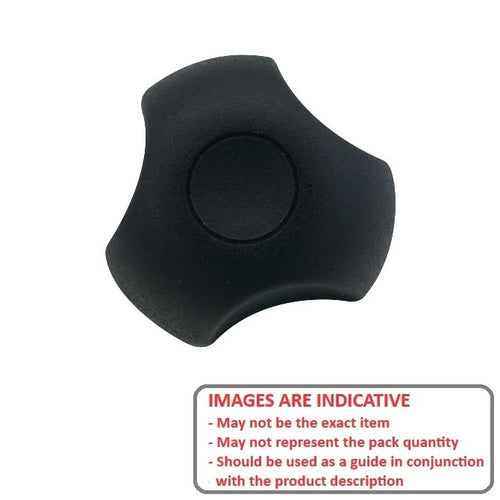

KM050M-025-3L25DiagramKM050M-025-3L25Image
