KM050M-025-5L10 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M5 (5x0.8mm)
  • Head Diameter (A) 25 mm
    (Equiv. 0.984 in.)
  • Thread Length 10 mm
    (Equiv. 0.394 in.)
  • Colour Black
  • Hub Diameter (C) 14.00 mm
  • Hub Length (D) 8.500 mm
  • Knob Height (B) 21.50 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NWJM5-10
  • CNWJM510
View full details

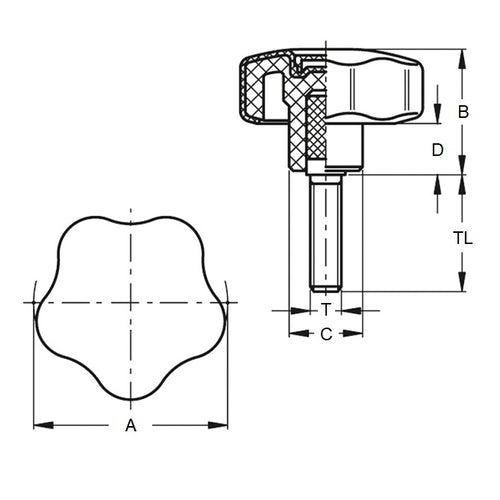

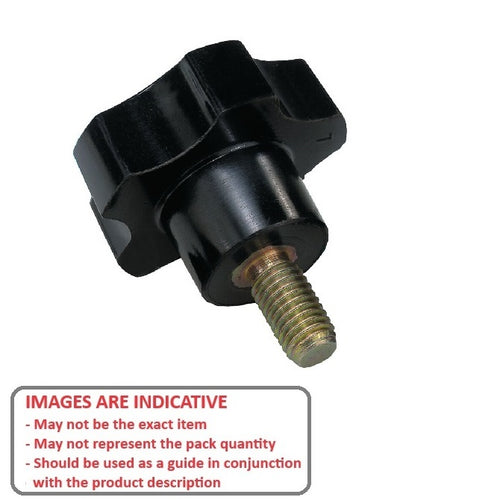

KM050M-025-5L10DiagramKM050M-025-5L10Image
