KF050M-025-5L-BR - Datasheet
MBA
Category Information

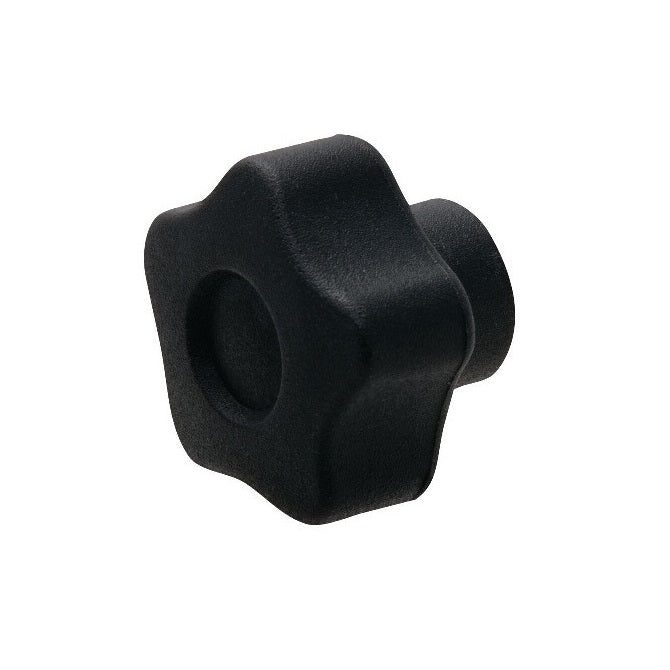

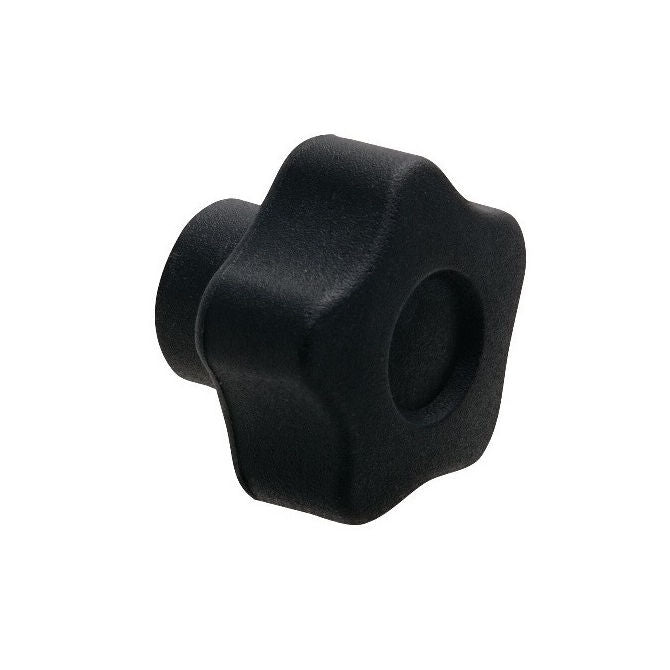

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M5 (5x0.8mm)
- Head Diameter (A)
25
mm
(Equiv. 0.984 in.) - Thread Length
10
mm
(Equiv. 0.394 in.) - Colour Black
- Hub Diameter (C) 14.00 mm
- Knob Height (B) 21.50 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NWJF5
- CNWJF5
