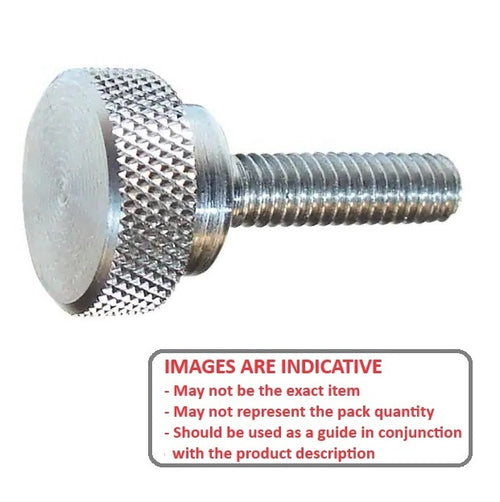

THS050M-025-K-3-SHL - Datasheet

MBA

Product Data

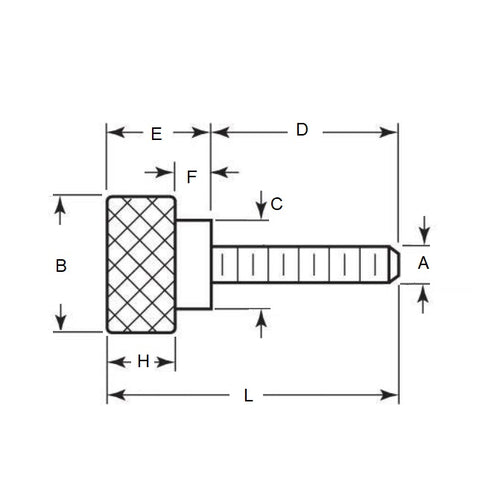

• Thread Size (A) : M5 (5x0.8mm)
• Thread Length (D) 25.00 mm
  (Equiv. 0.984 in.)
• Overall Length (L) 36.500 mm
  (Equiv. 1.437 in.)
• Head Diameter (B) 20.00 mm
• Shoulder Diameter (C) 10.00
• Shoulder Length (F) 7.50
• Head Height incl Shoulder (E) 11.50 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
