KF050M-020-KN-PH - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Plastic

Plastic Female Knurled Knobs. Black ABS Plastic head.

  • Temperature Range: -30oC to +140oC.

Product Data

  • Thread Size : M5 (5x0.8mm)
  • Head Diameter (D) 20.000 mm
    (Equiv. 0.787 in.)
  • Screw Depth (L) 9.000 mm
    (Equiv. 0.354 in.)
  • Colour Black
  • Brass
  • Top Dia. (D1) 13.50 mm
  • Hub Length (H1) 14.000 mm
  • 4.00
  • Material Phenolic
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NDZF5
  • Misumi C-NZWF5
  • CNZWF5
  • CNDZF5
View full details

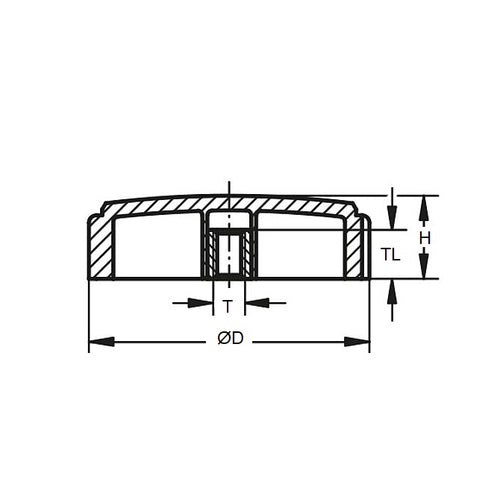

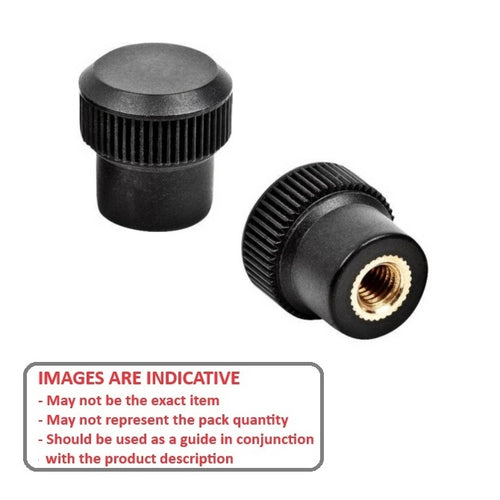

KF050M-020-KN-PHDiagramKF050M-020-KN-PHImage
