Miniature Bearings Australia
KM050M-20-KN20 - Datasheet
MBA
Category Information

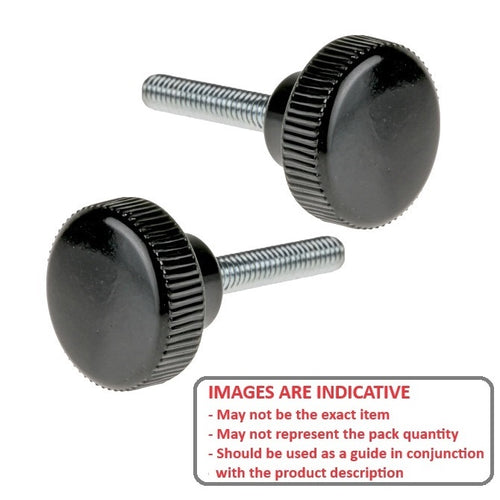

Knobs - Knurled - Male - PlasticPlastic Male Knurled Knobs. Black ABS Plastic head.
- Zinc plated steel thread.
Product Data
- Thread Size : M5 (5x0.8mm)

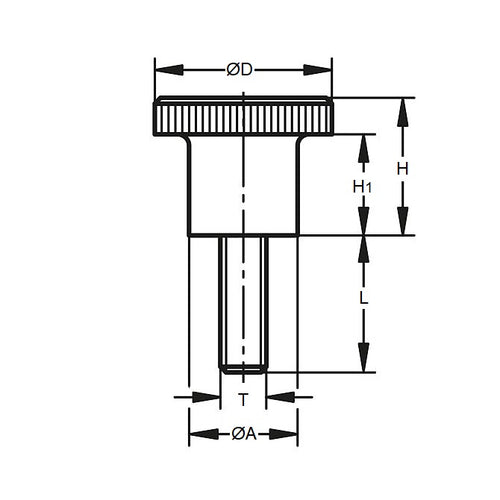

- Head Diameter (D)
20.000
mm
(Equiv. 0.787 in.) - Screw Length (L)
20.000
mm
(Equiv. 0.787 in.) - Colour Black
- Steel
- Shank Length (H1) 14.50 mm
- Width (H) 13.500 mm
- 13.50
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NDZM5-20
- CNDZM520
