THS050M-020-K-3-SHL - Datasheet
MBA
Category Information

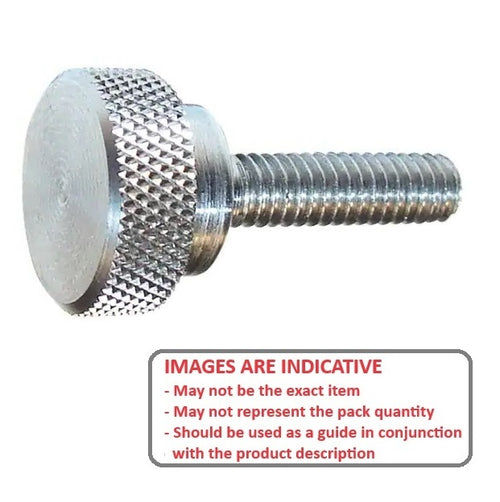

Screws - Thumb - ShoulderShoulder Thumb Screws. 303 Stainless Steel
- An expanded range may be available on special order. Please enquire.

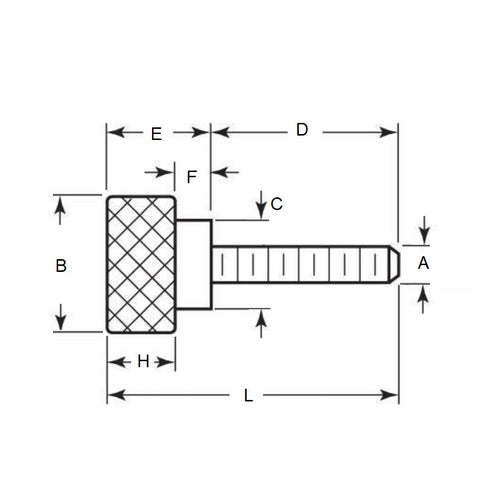

Product Data
- Thread Size (A) : M5 (5x0.8mm)
- Thread Length (D) 20.00 mm
- Overall Length (L) 31.500 mm
- Head Diameter (B) 20.00 mm
- Shoulder Diameter (C) 10.00
- Shoulder Length (F) 7.50
- Head Height incl Shoulder (E) 11.50 mm
- Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi® C-NKOS5-20
- CNKOS520
