SS050M-0160-S4-AT - Datasheet

MBA

Category Information

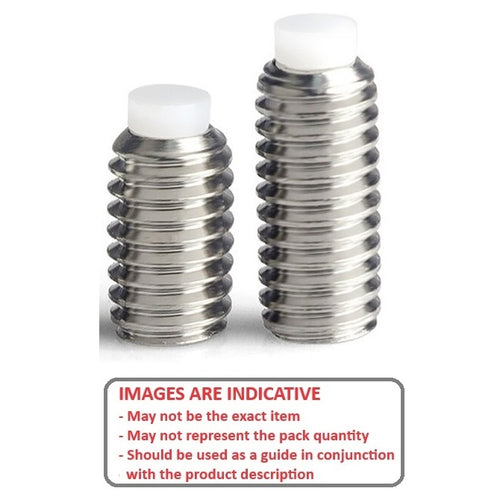

Socket Set Screws - Acetal Tipped - Stainless Steel

Stainless Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
  • Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.

Product Data

  • Thread Size : M5 (5x0.8mm)
  • Thread Length (L) 16.0 mm
    (Equiv. 0.63 in.)
  • Type Acetal Tipped
  • Overall Length (L + L1) 17.000 mm
  • Tip Diameter (d) 3.000 mm
  • Tip Length (L1) 1.000
  • Pitch 0.80 mm
  • Threads Per Inch 31.750 TPI
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SBPPS5-16
  • SBPPS516
