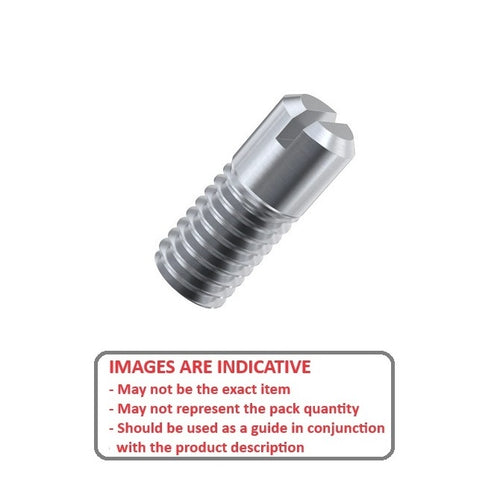

SS050M-0160-ASP - Datasheet

MBA

Product Data

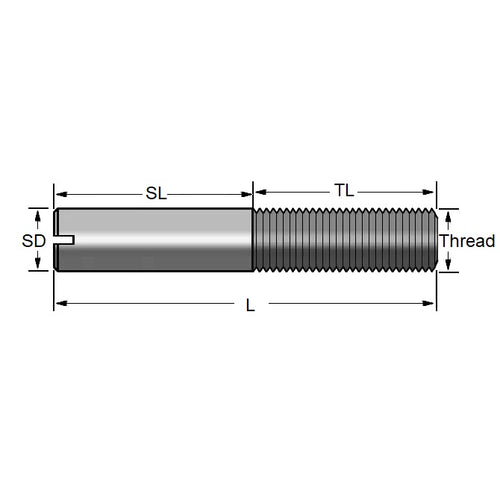

• Thread Size : M5 (5x0.8mm)
• Overall Length (L) 16 mm
  (Equiv. 0.63 in.)
• Type Partial Thread
• Thread Length 6.00 mm
• Shaft Length 10.00 mm
• Shaft Diameter 5.00 mm - 0.018 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
