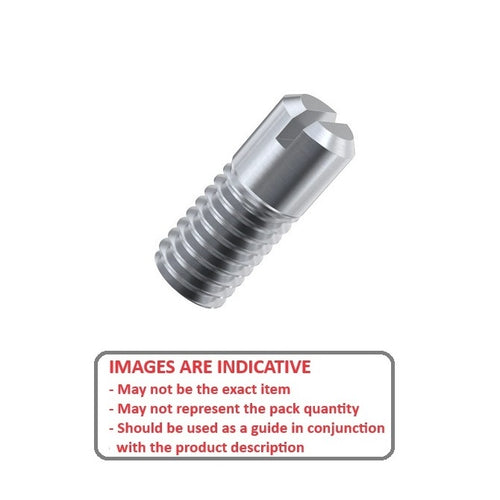

SS050M-0100-ASP - Datasheet

MBA

Product Data

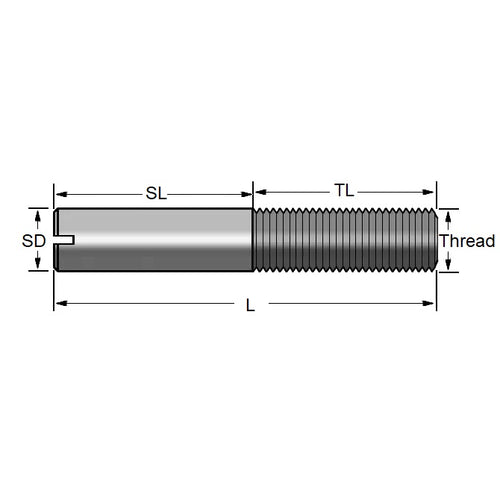

• Thread Size : M5 (5x0.8mm)
• Overall Length (L) 10 mm
  (Equiv. 0.394 in.)
• Type Partial Thread
• Thread Length 6.00 mm
• Shaft Length 4.00 mm
• Shaft Diameter 5.00 mm - 0.018 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75
