SC040M-008-C-SK-TC1 - Datasheet
MBA
Category Information

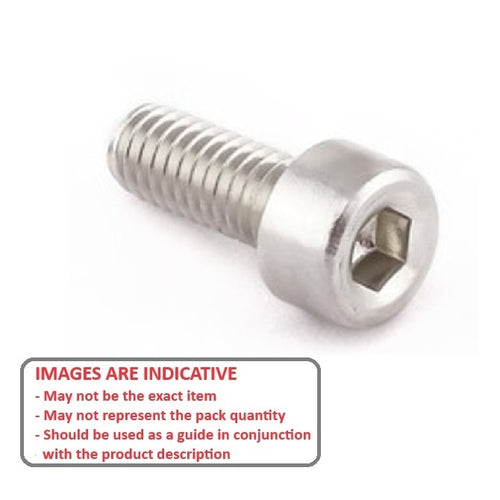

Screws - Socket Cap - Titanium - CP Grade 1 DIN912CP Grade 1 DIN912 Titanium Socket Cap Screws. Metric Sizes to DIN912. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.
- An expanded range may be available on special order. Please enquire.
- Commercially pure for general industrial corrosion applications. UNS R50250.
- Widely used in power generation, chemical processing, aerospace and medical applications.
- Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
8
mm
(Equiv. 0.315 in.) - Material Titanium CP Grade 1
- Head Length (B Max.) 4.0 mm
- Head Diameter (A Max.) 7.0 mm
- Drive Depth (E) 2.00 mm
- Shank Diameter (C) 3.82 - 4.00 mm
- Hex Key (D) 3.00 mm
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Min thread Length 8 mm
- Material Titanium - CP1 Commercially Pure
