SS040M-0100-AS-DP - Datasheet
SSA
Category Information

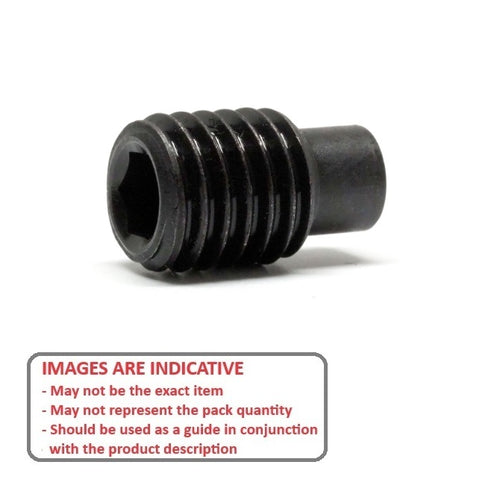

Socket Set Screws - Dog Point Carbon SteelDog Point Carbon Steel Socket Set Screws. Dog point grub screws
- Socket drive grub screws with a dog point tip.
- Set screw with a cylindrical, unthreaded "dog" tip that fits into a pre-drilled hole, slot, or milled flat in a second part to permanently locate and secure two components together.
- Commonly used in machinery to prevent movement, such as locking a gear onto a shaft.
Product Data
- Thread Size : M4 (4x0.7mm)
- Thread Length (L)
7.8
mm
(Equiv. 0.307 in.) - Type Dog Point
- Overall Length (L + L1) 10.0 mm
- Tip Diameter (d) 2.3 - 2.5 mm
- Tip Length (L1) 2.0 - 2.3 mm
- Hex Key Size 2.00
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 833035
