Miniature Bearings Australia
SS040M-0060-S3-BT - Datasheet
MBA
Category Information

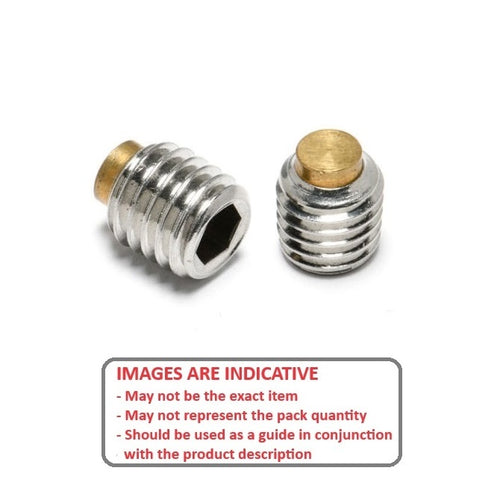

Socket Set Screws - Brass Tipped - Stainless SteelStainless Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
Product Data
- Thread Size : M4 (4x0.7mm)
- Thread Length (L)
6.0
mm
(Equiv. 0.236 in.) - Type Brass Tipped
- Overall Length (L + L1) 6.5 mm
- Tip Diameter (d) 2.5 mm
- Tip Length (L1) 0.5
- Hex Key Size 2.00
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90418A226
- GN.13941
