SS040M-0065-S4-AA-RB - Datasheet
MBA
Category Information

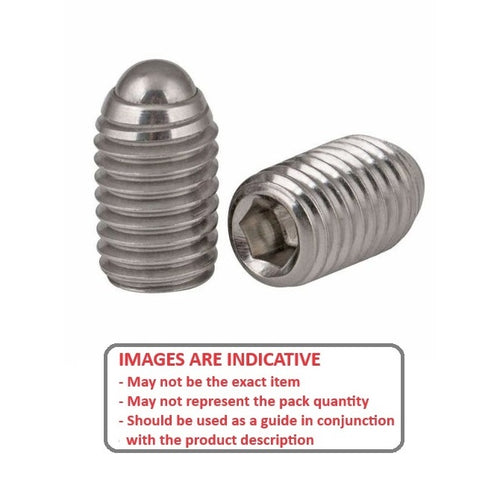

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data

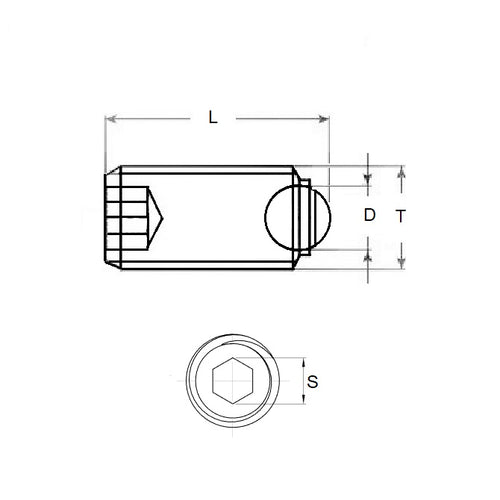

- Thread Size : M4 (4x0.7mm)
- Thread Length (L)
5.7
mm
(Equiv. 0.224 in.) - Type Rolling Ball Tip
- Overall Length (L) 6.5 mm
- Ball Diameter (D) 2.5 mm
- Hex Key Size 2.0
- Body Material 304 Stainless Steel
- Ball Material Alumina
- Pitch 0.7 mm
- Threads Per Inch 36.29 TPI
- Material 304 Stainless Steel with Alumina tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi RSUC4-6.5
- Misumi SCSS-M4X6-CE
- RSUC465
- SCSSM4X6CE
