SC040M-030-C-SK-TC2 - Datasheet
MBA
Category Information

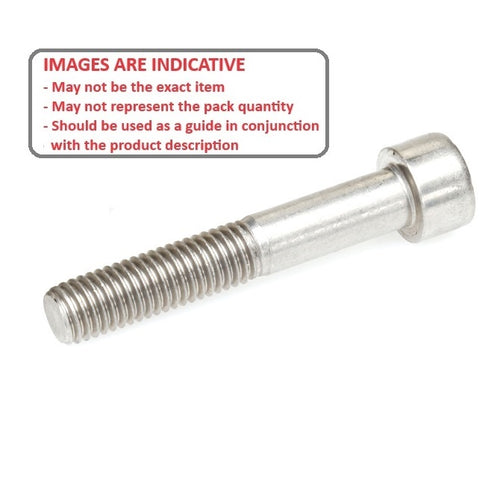

Screws - Socket Cap - Titanium - CP Grade 2 DIN912CP Grade 2 DIN912 Titanium Socket Cap Screws. Metric Sizes to DIN912. CP2 Commercially Pure Titanium Grade 2. Tensile Strength 35.2 kgf/mm2. Yield Strength 28.2 kgf/mm2. Elongation 20 Percent.
- An expanded range may be available on special order. Please enquire.
- Commercially pure for general industrial corrosion applications. UNS R50400.
- Widely used in power generation, chemical processing, aerospace and medical applications.
- Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.3, O 0.25, Ti Balance
Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
30
mm
(Equiv. 1.181 in.) - Material Titanium CP Grade 2
- Head Length (B Max.) 4.0 mm
- Head Diameter (A Max.) 7.0 mm
- Drive Depth (E) 2.00 mm
- Shank Diameter (C) 3.82 - 4.00 mm
- Hex Key (D) 3.00 mm
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Min thread Length 20 mm
- Material Titanium - CP2 Commercially Pure
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 95735A976
