SC040M-030-P-SL-N - Datasheet
MBA
Category Information

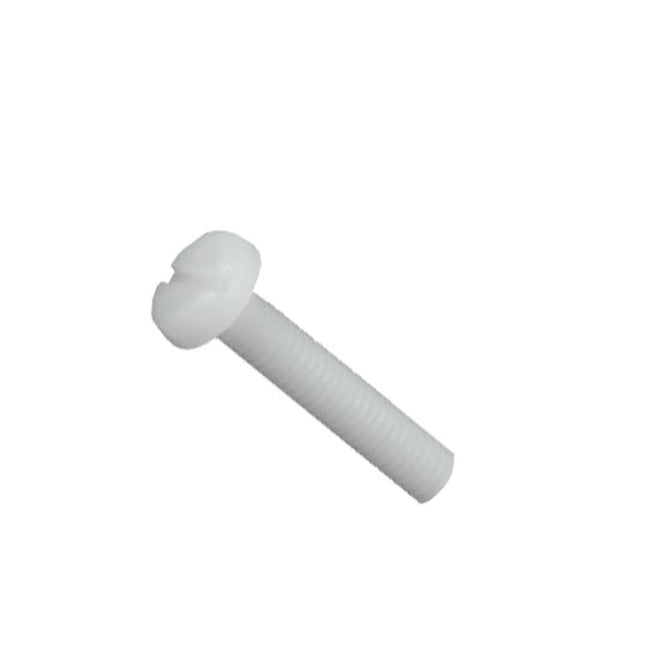

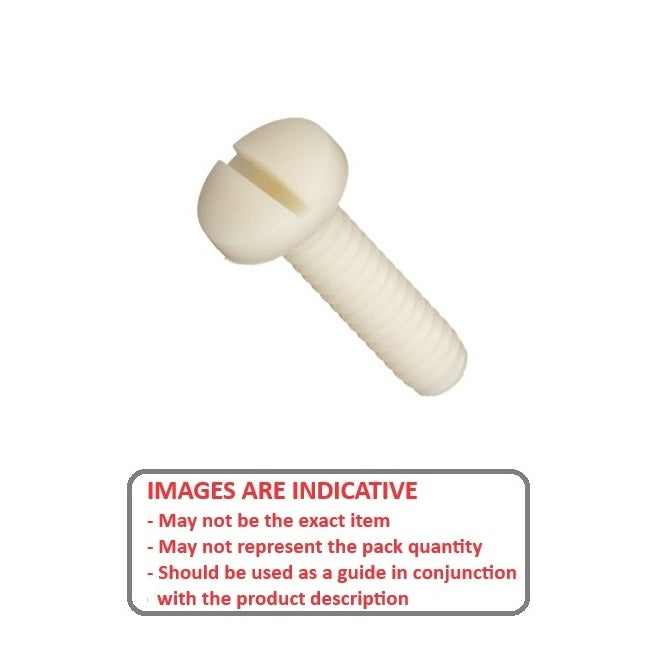

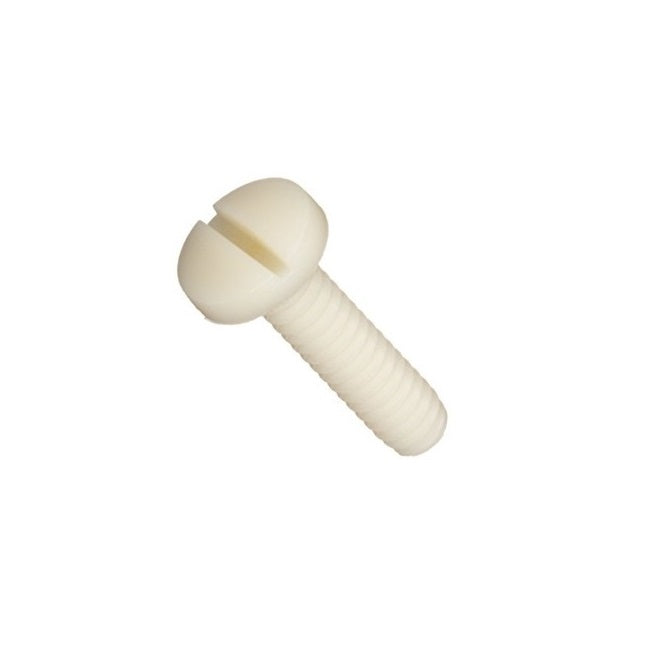

Screws - Pan Head - Slotted - NylonNylon Slotted Pan Head Screws. UNC - UNF - Metric
- An expanded range may be available on special order. Please enquire.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

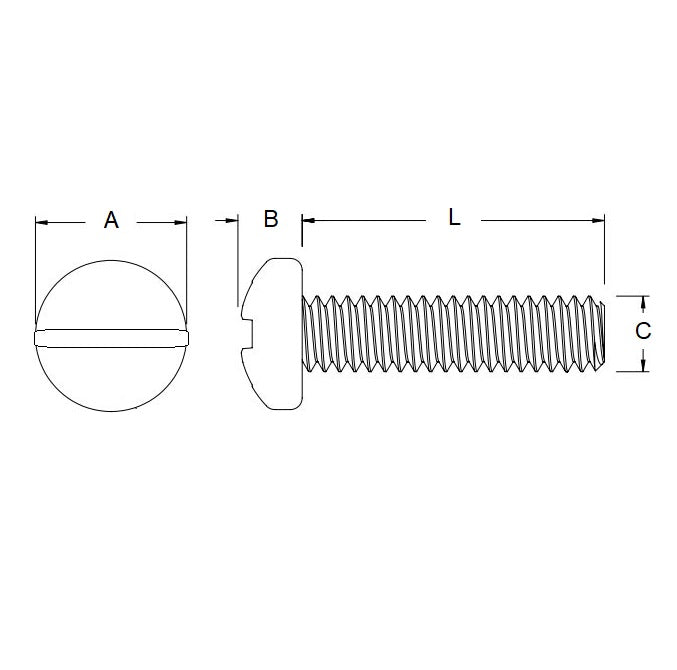

- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
30
mm
(Equiv. 1.181 in.) - Material Natural Nylon 6.6
- Max Head Diameter 8.0 mm
- Max Head Height 3.1 mm
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92942A823
