SK040M-030-SK-S6 - Datasheet
Brighton Best
Category Information

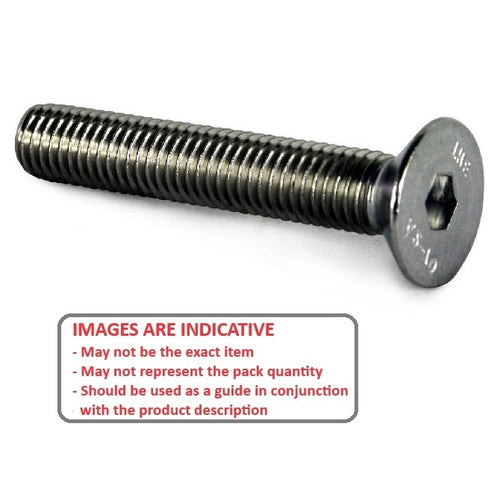

Screws - Countersunk - Socket - 316 Stainless316 Stainless Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Overall Length (L)
30
mm
+/- 0.25
(Equiv. 1.181 in.) - Material 316 Stainless
- Head Diameter (D) 7.5 mm
- Max Head Height 2.3 mm
- Hex Key (s) 2.50 mm
- Countersunk Angle 90 °
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Standard DIN7991
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 862134
- 93395A267
