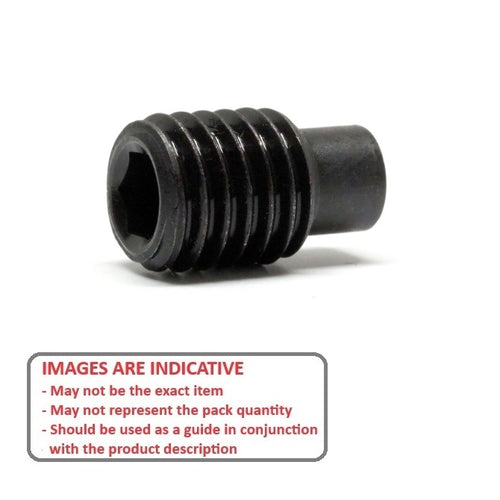

SS040M-0250-AS-DP - Datasheet

SSA

Product Data

• Thread Size : M4 (4x0.7mm)
• Thread Length (L) 22.8 mm
  (Equiv. 0.898 in.)
• Type Dog Point
• Overall Length (L + L1) 25.0 mm
• Tip Diameter (d) 2.3 - 2.5 mm
• Tip Length (L1) 2.0 - 2.3 mm
• Hex Key Size 2.00
• Pitch 0.700 mm
• Threads Per Inch 36.29 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 833042
