SC040M-020-LH-SK-C - Datasheet
Brighton Best
Category Information

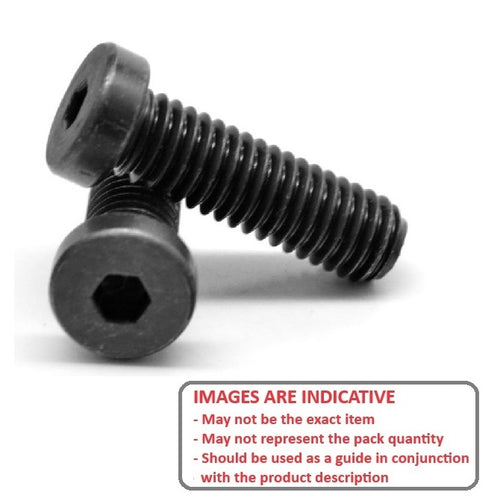

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
20
mm
(Equiv. 0.787 in.) - Material High Tensile Steel / Black Oxide
- Head Height 3.82 - 4.00 mm
- Head Diameter 6.78 - 7.22 mm
- Usual Hex Key (D) 2.50 (May Vary) mm
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 531049
- 93070A107
