SC040M-016-HS-T5 - Datasheet
MBA
Category Information

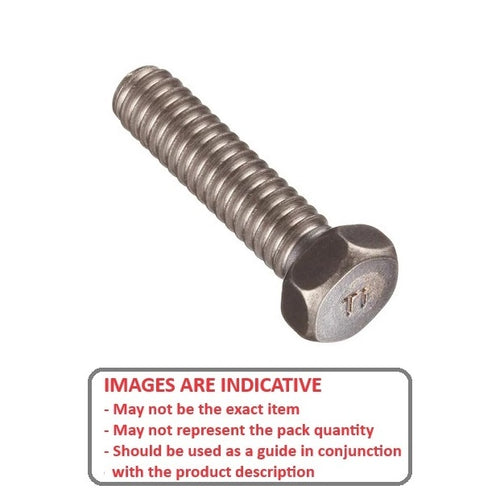

Screws - Hex Head - Full Thread - Titanium - Ti-Gr5 Ti-6Al4vTi-Gr5 Ti-6Al4v Titanium Full Thread Hex Head Screws. Fully threaded hex head set screws (DIN933). Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- An expanded range may be available on special order. Please enquire.
- Used in critical aircraft structural components. UNS R56400.
- Din 933.
- Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
- Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
Product Data

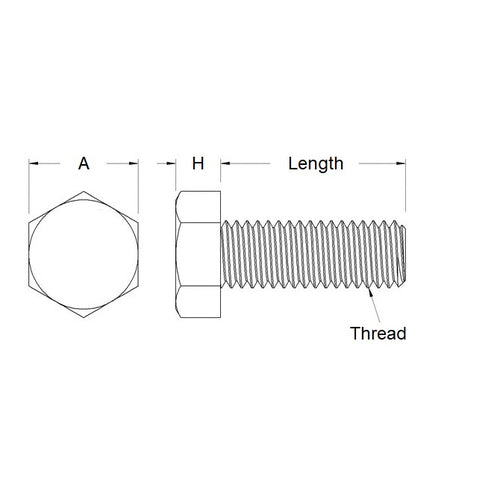

- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
16
mm
(Equiv. 0.63 in.) - Material Titanium Grade 5
- Type Set Screw - Full Thread (DIN933)
- Material Titanium Ti-Gr-5 - 6AL-4V
Product Compliance and Data
