Miniature Bearings Australia
SS040M-0100-S3-NT - Datasheet
MBA
Category Information

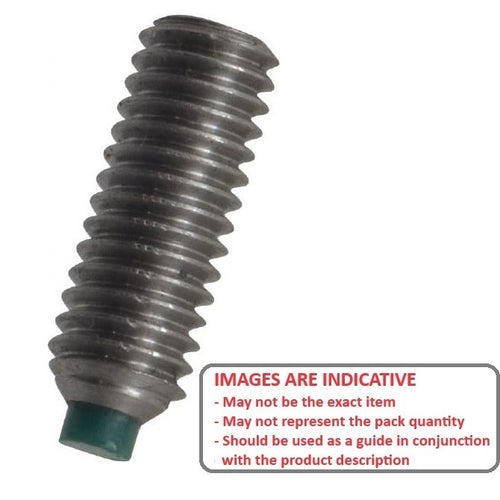

Socket Set Screws - Nylon Tipped - 304 Stainless Steel304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
Product Data
- Thread Size : M4 (4x0.7mm)
- Thread Length (L)
10.0
mm
(Equiv. 0.394 in.) - Type Nylon Tipped
- Overall Length (L + L1) 11.2 mm
- Tip Diameter (d) 2.4 mm
- Tip Length (L1) 1.2
- Hex Key Size 2.00
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Drive Type Socket
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 93285A216
- BTS-1435
- BTS1435
