SC040M-010-LH-SK-S6L - Datasheet
MBA
Category Information

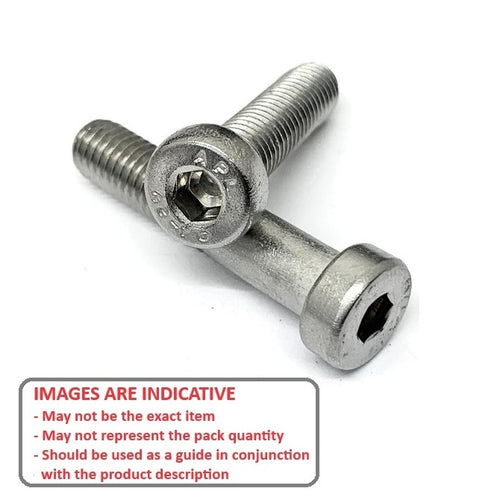

Screws - Low Head Socket - 316L Stainless316L Stainless Low Head Socket Screws. 316L Stainless Steel. Other sizes available on request.
- Hexagon socket cap head with low head. Safety improvements and compact size for equipment and devices.
- May be used in vacuum chamber applications in clean rooms, Flat Panel Displays, Semiconductor production equipment and devices.
- All clean washed, preventing the inclusion of oil and foreign particles.
Product Data
- Thread Size : M4x0.7
- Length
10
mm
(Equiv. 0.394 in.) - Head Diameter (A)
7.00
mm
(Equiv. 0.276 in.) - Head Height (B) 2.8 mm
- Hex Key Size (D) 2.5 mm
- Hex Key Depth (E) 2.3 mm
- L2 10.00 (Full Thread) mm
- Mass 1.4 g
- Material Stainless Steel 316L
