KF040M-016-T303 - Datasheet

MBA

Category Information

Knobs - Ball - Female Threaded - Stainless Steel

Stainless Steel Female Threaded Ball Knobs. 303 stainless steel (European grade 1.4305)

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread or Hole Size : M4 (4x0.7mm)
  • Diameter 16.00 mm
    (Equiv. 0.63 in.)
  • Thread Minimum Depth 7.2 mm
    (Equiv. 0.283 in.)
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WBK-5
  • WBK5
View full details

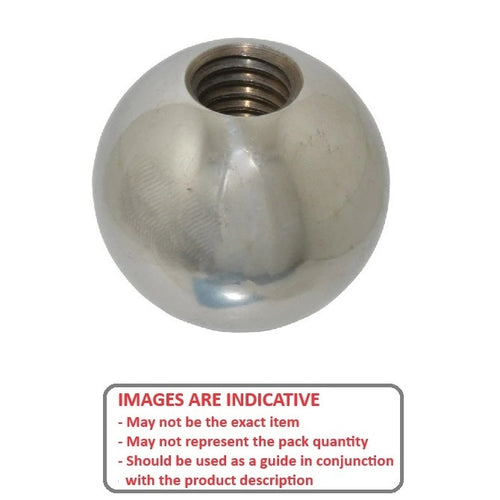

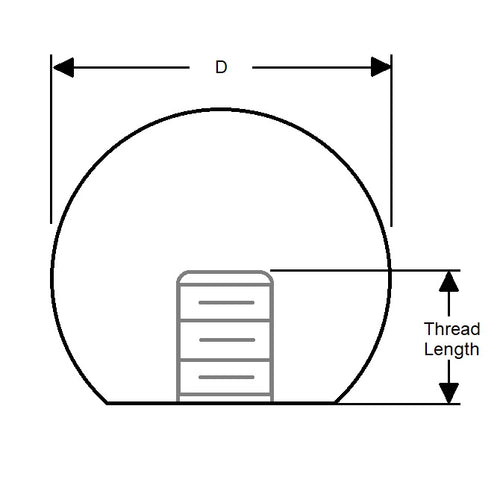

KF040M-016-T303DiagramKF040M-016-T303Image
